Rencool RDK4 24 Volt Air Conditioning Compressor Unit

24 Volt Air Conditioner Compressor

• Primary
• Anti-Idle
• Secondary
• Dual Compressor with OEM
• 2-6Kw Cooling Allowance
• Low Temp Refrigeration
• R134a and R404a Gas

Designed and Suited for the Mining, Military & Heavy Machine Sector

Australian Made for Australian Conditions with outstanding performance & reliability

Specifications

• 3mm Stainless Steel Fabrication
• 24cc Compressor IP68 Rated (Submersible)
• Brushless Design 1Kw to 4.2Kw
• Adjustable Compressor Speed 2000 to 6000 rpm
• Oil Separation Tank for good oil return to Compressor
• Brushless Cooling Fan IP68 Rated (Submersible)
• High Temp thermo cut-out
• Built-in BLDC controller to Compressor
• Steel Nickle plated fittings
• Electrical Safety cut-outs
• Hour Meter
• Plug & Play design
• Design is Debris Tolerable

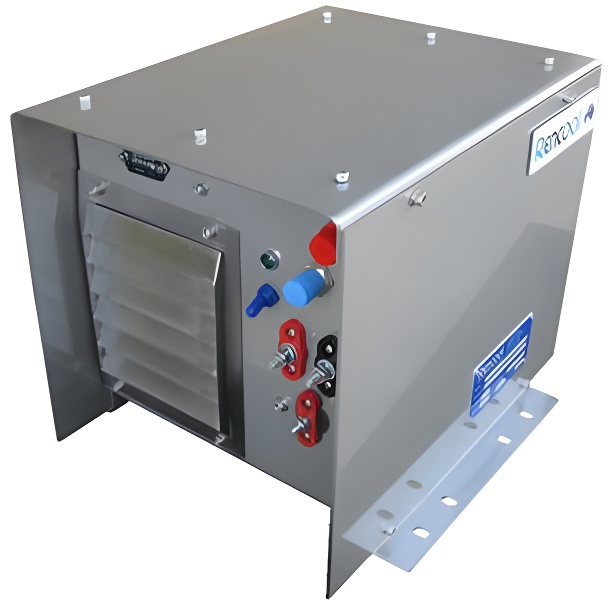

The Rencool RDK4 is a 24 volt DC electric compressor drive system for mobile or stationary equipment for suitable air conditioners up to 6Kw.

The unit is supplied with a full 3mm stainless steel enclosure for a bolt in plug & play system for a straight forward easy installation.

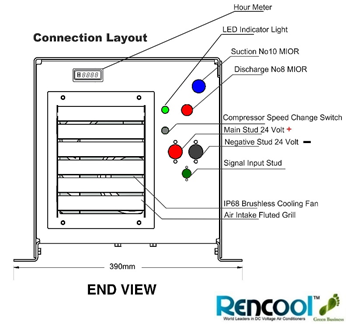

Simple electrical hook-up and Aust standard MIOR 8 & 10 fittings for the Suction & Discharge makes it too easy for Installations.

RPM is key adjustable from 4000 to 6000.

No programming required for the Installation, which gives the RDK4 a true plug and play experience. Compressor is (IP68) rated and able to tolerate 100Hz vibration.

Oil separation is standard within the unit making able for longer hose runs with no risk of starving the compressor of oil return.

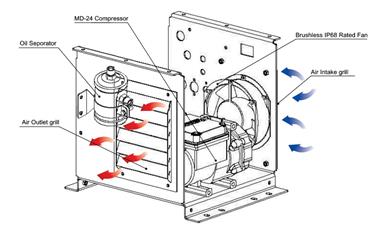

Oil Separation

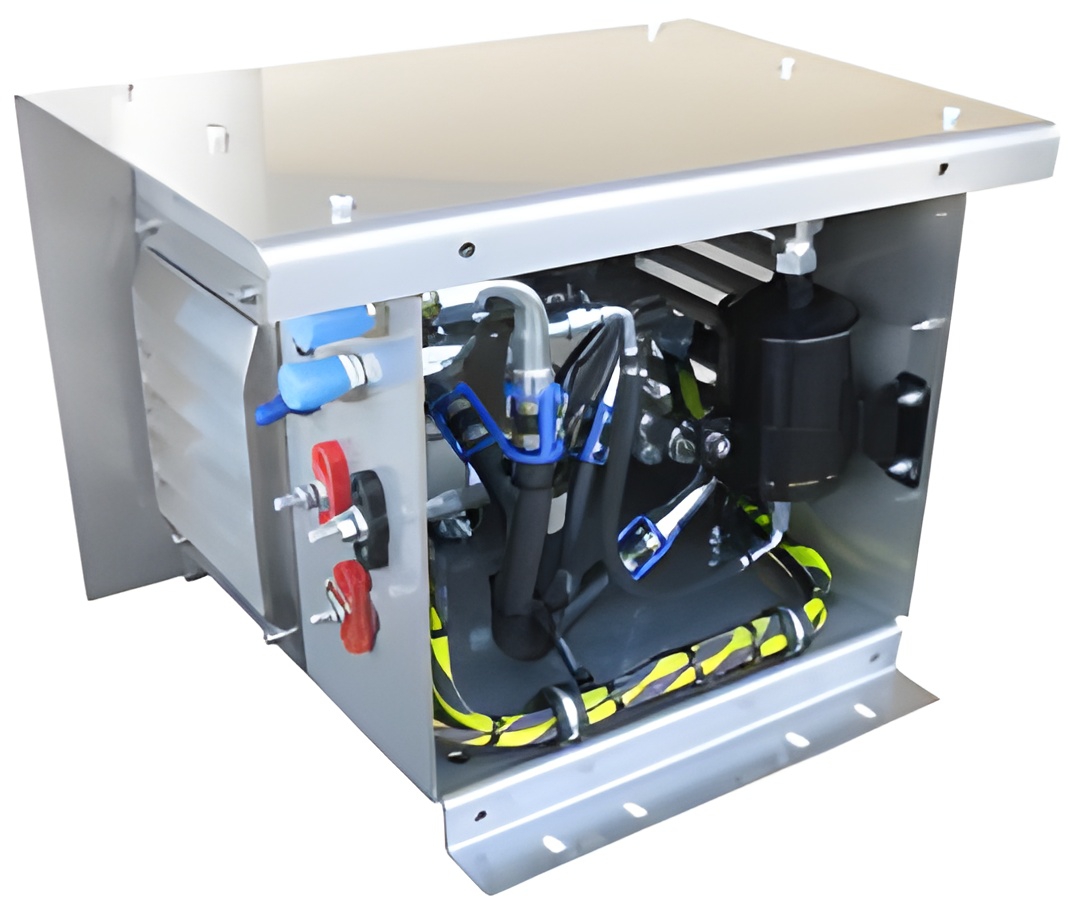

The RDK4 comes standard with the oil separator built into the units enclosure. The Brushless IP68 rated fan provides more than adequate air flow and able to with stand water and debris in environmental hash conditions.

Dimensions
3mm STAINLESS STEEL
ENCLOSURE 405(L) X 390(W) X 342(H)
Mass Weight: 30Kg
