Rencool DRK8-24 Electric Compressor Drive
Australian dollar ($) - AUD
Prices are shown in AUD. Australian GST is included where applicable.
Specify high-output 24 V cooling with the Rencool DRK8-24 electric compressor drive. The 2 kW brushless drive and 120 cm³ compressor support up to 8.01 kW system duty.
- Format
- Electric compressor-drive assembly
THIS PRODUCT ISCompressor drive module
Requires matched condenser, evaporator, controls, hoses and electrical supply.
See what else you need ↓Supplied to your requirements. Include the model, quantity, power supply and delivery destination.
Request a quote →BUY WITH CONFIDENCE
Is this the right part for your system?
This section separates the product from the rest of the system so you can see what you are buying and what still has to be matched.
Heavy equipment, anti-idle and primary compressor applications that need the motor, compressor and controller protected inside one serviceable enclosure.
Included with this listing
- Enclosed compressor-drive assembly for the selected model

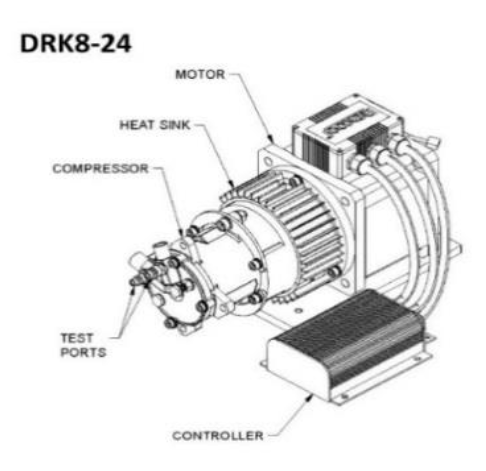

- Internal drive motor/controller arrangement described on the listing
Still required for a working system
- Compatible condenser and evaporator circuit
- Receiver drier or accumulator arrangement selected for the circuit
- High/low-pressure protection
- Refrigerant hoses and fittings
- Main power cable, fuse and control integration
Common options
- Matched evaporator and condenser upgrades
- Application-specific control panel
- Service hose and fitting package
What may be retained
- Existing heat exchangers and cabin controls may be retained only after a complete circuit and electrical review.
| Product / model | Rencool DRK8-24 Electric Compressor Drive |
|---|---|
| Ordering SKU | DRK8-24 |
| Product role | Enclosed electric compressor drive |
| Purchase path | Technical quotation required before supply. |
| Primary selection | Primary, secondary or anti-idle operating mode; Voltage range and available continuous current; Cooling duty and heat-exchanger capacity |
| Final confirmation | Use the model-specific technical tables on this page and confirm the complete system match before ordering. |
Compatibility checklist before ordering
- Primary, secondary or anti-idle operating mode
- Voltage range and available continuous current
- Cooling duty and heat-exchanger capacity
- Mounting orientation, clean-air access and hose length
- OEM compressor changeover and oil-return strategy
Technical and procurement evidence
Public model-specific documents are not yet attached to this listing. Request the drawing, technical data, test evidence, traceability and document-control level required for your order or tender.
Ordering and delivery
Configured to order. The operating mode, electrical supply and refrigerant schematic are reviewed before quotation. Freight is based on the packed consignment; large or configured products receive a confirmed pack plan before dispatch.
ENGINEERING & PROCUREMENT
Need this product for a tender or controlled project?
Send the exact model, voltage, duty point, quantities, destination and required drawings or test evidence. The proposal can then refer to one controlled configuration.
Product details
Delivery
| Voltage | |
|---|---|
| Product type | |
| How it is used | Build a new system, Integrate with existing A/C, Replace or upgrade a component |
| Delivery cost | Delivery is priced with your quote. Include your delivery address and order quantity when requesting a quote. |
| Delivery information | Shipping, delivery times and returns |
