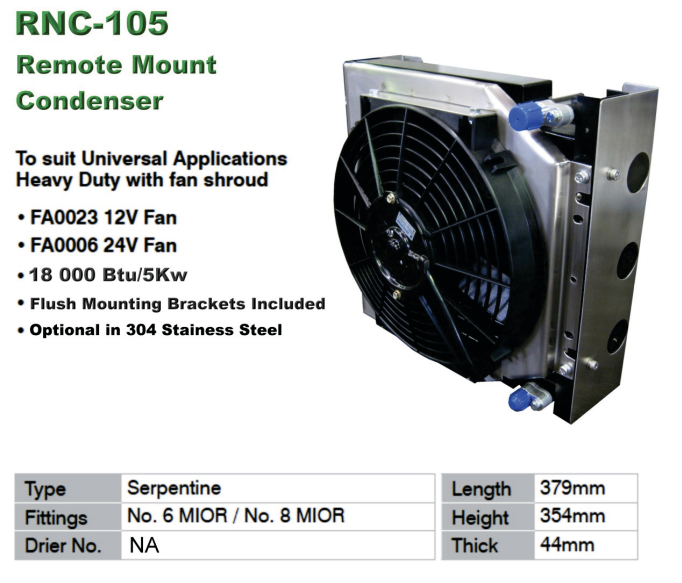

Rencool RNC-105 12 / 24 V Remote Condenser product view

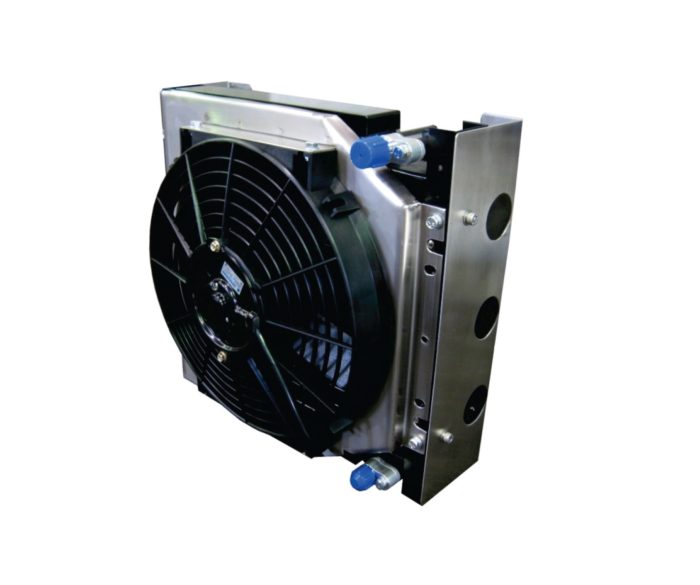

Rencool RNC-105 12 / 24 V Remote Condenser product view 2

Rencool RNC-105 12 / 24 V Remote Condenser

$946.00

Australian dollar ($) - AUD
  • Australian dollar ($) - AUD
  • United States dollar ($) - USD

Prices are shown in AUD. Australian GST is included where applicable.

Place heat rejection where airflow and service access work best. The Rencool RNC-105 remote condenser combines a fan shroud, flush brackets and voltage-specific 12 or 24 V fan options.

Format
Remote condenser with fan shroud
THIS PRODUCT ISCondenser component

Match voltage, heat-rejection capacity, refrigerant, airflow and fittings to the full system.

SKU: RNC-105 Categories: , Brand:

BUY WITH CONFIDENCE

Is this the right part for your system?

This section separates the product from the rest of the system so you can see what you are buying and what still has to be matched.

THIS PRODUCT IS

Condenser or condenser assembly

BEST FOR

Rejecting refrigerant heat from a matched compressor/evaporator circuit with the specified voltage, airflow and capacity.

Included with this listing

  • Condenser assembly shown for the selected model
  • Fans or shroud only where expressly shown and stated

Still required for a working system

  • Compatible compressor and evaporator
  • Receiver drier and expansion device
  • High/low-pressure protection
  • Refrigerant hoses/fittings
  • Fan switching, fuse and wiring

Common options

  • Receiver drier
  • Fan-control relay or pressure switch
  • Mounting and stone protection

What may be retained

  • The existing compressor, evaporator and controls may be retained when capacity, refrigerant and fittings are compatible.
Technical decision points
Product / modelRencool RNC-105 12 / 24 V Remote Condenser
Ordering SKURNC-105
Product roleCondenser or condenser assembly
Purchase pathAvailable for online checkout when destination freight is returned.
Primary selectionHeat-rejection capacity; Fan voltage and current; Airflow direction and unrestricted intake/exhaust
Final confirmationUse the model-specific technical tables on this page and confirm the complete system match before ordering.
Compatibility checklist before ordering
  • Heat-rejection capacity
  • Fan voltage and current
  • Airflow direction and unrestricted intake/exhaust
  • Port size and hose routing
  • Mounting envelope and service access

Commonly matched products

Rencool MD18-2 12 V Electric CompressorRencool MD18-4 24 V Electric CompressorRencool MD24A6 24 V Electric CompressorRencool Receiver Drier with Mounting BracketRencool HP/LP Pressure Safety SwitchRencool EV2208 12 V 5 kW Underdash Evaporator

These are common system roles, not a promise that every listed part fits every application. Match voltage, capacity, refrigerant circuit and connections.

Technical documents

RNC-105 product sheetPDFRNC-105 dimensional drawingPDF

Ordering and delivery

Availability and lead time are confirmed at order review. Verify the exact voltage variant before checkout. Freight is based on the packed consignment; large or configured products receive a confirmed pack plan before dispatch.

Request a technical quote

Product details

The Rencool RNC-105 is a compact remote condenser assembly for split mobile air-conditioning systems. It moves condenser heat outside the cabin and lets installers place the heat exchanger where airflow, packaging and service access suit the vehicle.

Complete condenser, fan shroud and flush-mount bracket assembly.

Voltage-specific 12 and 24 V fan options simplify electrical matching.

Reversible MIOR pad fittings support practical hose routing.

Why specify the RNC-105

Use the RNC-105 when the compressor and evaporator must sit in different locations or a compact replacement condenser is needed. The complete assembly provides the air-moving hardware and mounting structure required for reliable heat rejection.

Common applications

  • Sleeper-cab and anti-idle air conditioning
  • Custom automotive and motorsport systems
  • Trucks, utilities and service vehicles
  • Marine, leisure and off-grid cabins
  • Compact machinery and equipment enclosures

Technical specifications

Configuration and service parts

Configuration and service parts
Model RNC-105
Equipment type Remote condenser with fan shroud
12 V fan FA0023
24 V fan FA0006
Replacement coil RNC-100 coil only

Connections and construction

Connections and construction
Refrigerant fittings MIOR 8 and 10 pad fittings
Port arrangement Reversible for hose routing
Mounting Flush brackets
Material option 304 stainless steel
System role Heat rejection for a separate compressor and evaporator

Physical and installation data

Physical and installation data
Assembly envelope 379 × 352 × 117 mm
Coil-only reference 379 × 354 × 44 mm
Airflow clearance Required on both coil faces
Electrical protection Fan circuit fused for selected voltage
Service access Allow fan and fitting removal space

Selection note: The complete RNC-105 assembly and the RNC-100 replacement coil have different envelopes. Use the assembly dimensions for vehicle packaging and verify condenser duty against compressor heat rejection.
