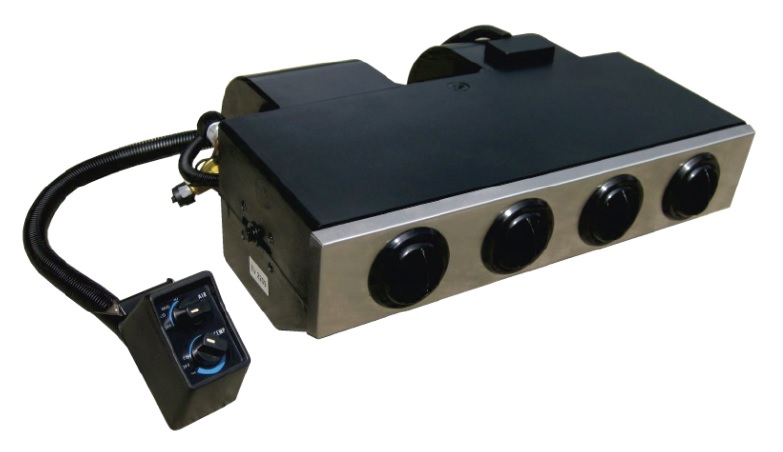

Rencool EV2208 12 V 5 kW Underdash Evaporator product view

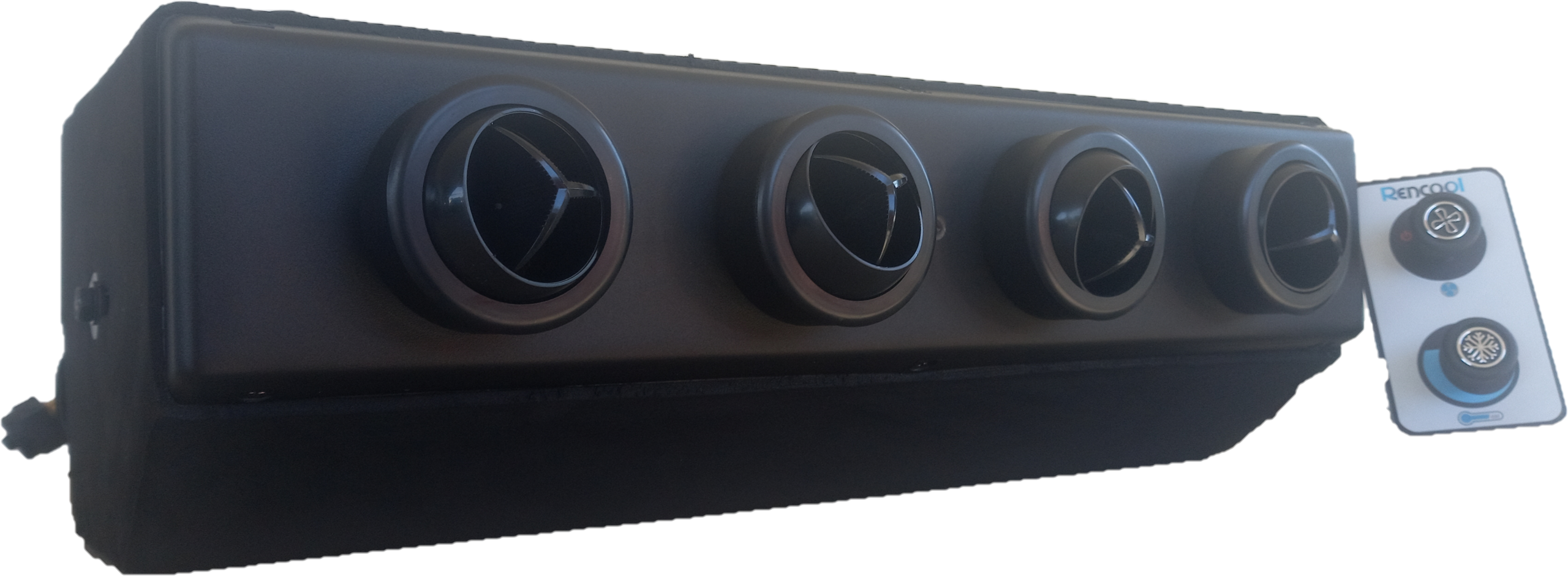

Rencool EV2208 12 V 5 kW Underdash Evaporator product view 2

Rencool EV2208 12 V 5 kW Underdash Evaporator

$913.00

Australian dollar ($) - AUD
  • Australian dollar ($) - AUD
  • United States dollar ($) - USD

Prices are shown in AUD. Australian GST is included where applicable.

Put dependable 5 kW-class cooling under the dash with the 12 V Rencool EV2208. Four adjustable outlets and 300 CFM airflow bring conditioned air directly to the occupants.

Blower
12 V DC
Air outlets
Four adjustable outlets
THIS PRODUCT ISEvaporator component

Match voltage, cooling capacity, refrigerant metering and controls to the full system.

SKU: EV-2208 Category: Brand:

BUY WITH CONFIDENCE

Is this the right part for your system?

This section separates the product from the rest of the system so you can see what you are buying and what still has to be matched.

THIS PRODUCT IS

Cabin evaporator or evaporator/heater

BEST FOR

Delivering cooled air inside the cabin as part of a matched refrigerant circuit.

Included with this listing

  • Evaporator assembly shown for the selected model
  • Louvers, controls or heater function only where expressly described

Still required for a working system

  • Compatible compressor and condenser
  • Receiver drier and correctly selected expansion device
  • High/low-pressure protection
  • Refrigerant hoses/fittings
  • Drain, wiring and ducting required by the installation

Common options

  • Control panel or thermostat
  • Ducting and vents
  • Heater integration where supported

What may be retained

  • The existing compressor and condenser may be retained when capacity, refrigerant, metering and control strategy are compatible.
Technical decision points
Product / modelRencool EV2208 12 V 5 kW Underdash Evaporator
Ordering SKUEV-2208
Product roleCabin evaporator or evaporator/heater
Purchase pathAvailable for online checkout when destination freight is returned.
Primary selectionCooling duty and airflow; Blower voltage and current; Physical envelope and outlet layout
Final confirmationUse the model-specific technical tables on this page and confirm the complete system match before ordering.
Compatibility checklist before ordering
  • Cooling duty and airflow
  • Blower voltage and current
  • Physical envelope and outlet layout
  • Expansion device and refrigerant
  • Drain path, return-air path and service access

Commonly matched products

Rencool MD18-2 12 V Electric CompressorRencool MD18-4 24 V Electric CompressorRencool MD24A6 24 V Electric CompressorRencool RNC-105 12 / 24 V Remote CondenserRencool Receiver Drier with Mounting BracketRencool HP/LP Pressure Safety Switch

These are common system roles, not a promise that every listed part fits every application. Match voltage, capacity, refrigerant circuit and connections.

Technical documents

EV2208 dimensional drawingPDF

Ordering and delivery

Availability and lead time are confirmed at order review. Match voltage and capacity to the rest of the circuit. Freight is based on the packed consignment; large or configured products receive a confirmed pack plan before dispatch.

Request a technical quote

Product details

The Rencool EV2208 is a compact 12 V underdash evaporator that combines a 5 kW-class coil, 300 CFM blower and four adjustable outlets. It brings conditioned air close to the occupants while the compressor and condenser remain elsewhere in the vehicle.

5 kW reference evaporator capacity for compact split systems.

300 CFM blower feeds four individually adjustable outlets.

Adjustable temperature and de-ice thermostats protect comfort and coil operation.

Why specify the EV2208

Specify the EV2208 when a proven underdash format is the most direct way to add cabin cooling. Its integrated blower and outlets simplify air distribution, while the separate refrigeration circuit gives installers freedom to position the compressor and condenser.

Common applications

  • Classic vehicles and custom automotive conversions
  • Trucks, utilities and service vehicles
  • Small machinery and equipment cabins
  • Marine cabins and leisure vehicles
  • Anti-idle and auxiliary cooling systems

Technical specifications

Performance and airflow

Performance and airflow
Model EV2208
Equipment type Underdash evaporator and blower
Reference coil capacity 5 kW
Nominal airflow 300 CFM
Air outlets Four adjustable eyeball outlets

Electrical and controls

Electrical and controls
Blower supply 12 V DC
24 V alternative EV2209
Temperature control Adjustable cabin thermostat
Coil protection De-ice thermostat
Remote-control harness Available up to 6 m

Physical data

Physical data
Body width 445 ± 2 mm
Front-to-back dimension 340 ± 2 mm
Body height 152 ± 2 mm
Connection projection 21.5 ± 2 mm reference
System requirement Separate compressor, condenser and expansion device

Selection note: The 5 kW figure is an evaporator-coil reference. Installed cooling depends on compressor capacity, condenser performance, refrigerant circuit, airflow resistance and operating conditions.
