Rencool RDC4 Compressor–Condenser Unit

Guide price: $8,456.00

Australian dollar ($) - AUD
  • Australian dollar ($) - AUD
  • United States dollar ($) - USD

Prices are shown in AUD. Australian GST is included where applicable.

Build a flexible split DC air-conditioning system around the Rencool RDC4 compressor–condenser unit. Available in 12, 24 and 48 V configurations with up to 4.0 kW duty.

Supply options
12 V / 24 V DC
Format
Compressor and condenser
THIS PRODUCT ISCompressor + condenser module

Add a matched evaporator, controls and refrigerant lines to complete the system.

See what else you need ↓

Supplied to your requirements. Include the model, quantity, power supply and delivery destination.

Request a quote →
SKU: RDC4 Category: Brand:

BUY WITH CONFIDENCE

Is this the right part for your system?

This section separates the product from the rest of the system so you can see what you are buying and what still has to be matched.

THIS PRODUCT IS

Compressor-condenser module

BEST FOR

Split systems that need the compressor and heat rejection packaged together while using a remote evaporator.

Included with this listing

  • Compressor-condenser module described on the listing
  • Integrated components specifically named on the product page

Still required for a working system

  • Compatible evaporator and expansion device
  • Receiver drier where required by the circuit
  • High/low-pressure protection and thermostat demand
  • Refrigerant lines and fittings
  • Electrical supply, fuse and vehicle-side controls

Common options

  • Matched evaporator
  • Control panel or thermostat
  • Hose and fitting package

What may be retained

  • An existing compatible evaporator and cabin controls may be retained after duty, metering and protection checks.
Technical decision points
Product / modelRencool RDC4 Compressor–Condenser Unit
Ordering SKURDC4
Product roleCompressor-condenser module
Purchase pathTechnical quotation required before supply.
Primary selectionVoltage and current capacity; Cooling duty and matching evaporator; Refrigerant and connection sizes
Final confirmationUse the model-specific technical tables on this page and confirm the complete system match before ordering.
Compatibility checklist before ordering
  • Voltage and current capacity
  • Cooling duty and matching evaporator
  • Refrigerant and connection sizes
  • Condenser airflow and mounting clearance
  • Control and pressure-safety logic

Technical and procurement evidence

Public model-specific documents are not yet attached to this listing. Request the drawing, technical data, test evidence, traceability and document-control level required for your order or tender.

Ordering and delivery

Configured to order. The evaporator match and electrical/refrigerant interfaces are confirmed in the quotation. Freight is based on the packed consignment; large or configured products receive a confirmed pack plan before dispatch.

Request a technical quote

Product details

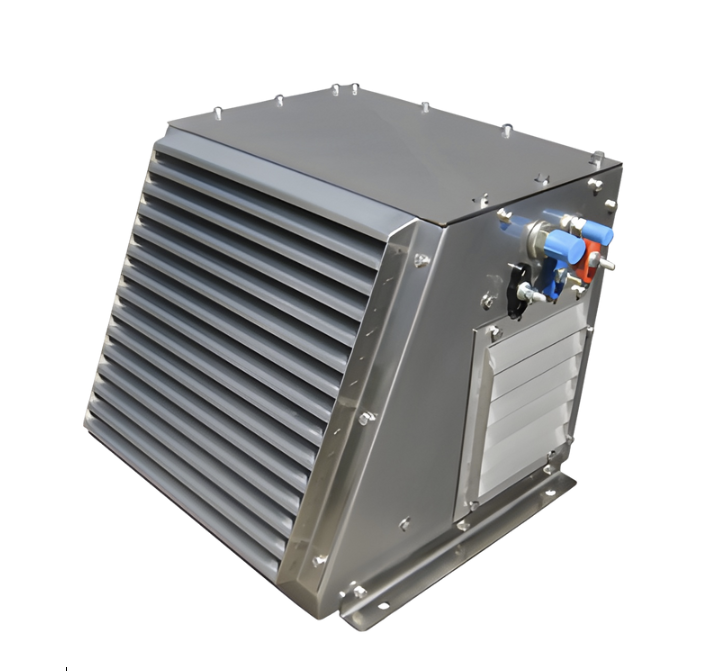

The Rencool RDC4 is an enclosed compressor–condenser unit for flexible 12, 24 or 48 V split air-conditioning systems. It provides up to 4.0 kW cooling-system duty while allowing the evaporator to be selected and positioned for the cabin or enclosure.

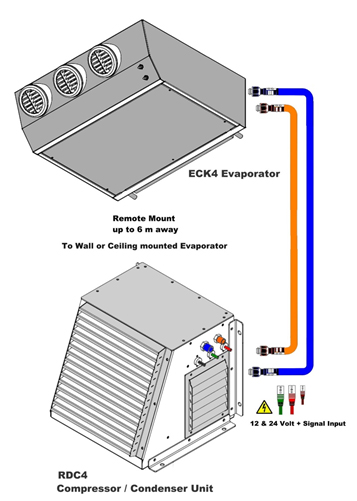

Remote evaporator layout keeps compressor heat and noise outside the conditioned space.

Broad DC voltage coverage supports mobile, battery and off-grid projects.

Compact stainless enclosure is suited to primary, secondary and anti-idle cooling.

Why specify the RDC4

The RDC4 is a practical starting point for custom HVAC systems where a complete rooftop or wall unit will not fit. Pair it with a matched evaporator such as the EVK5 family and configure the controls around the way the vehicle or machine is used.

Common applications

  • Utility vehicles, trucks and mobile workshops
  • Mining and construction machine cabins
  • Marine and specialist transport cabins
  • Anti-idle and auxiliary cooling systems
  • Remote equipment and communications enclosures

Technical specifications

Product configuration

Product configuration
Model RDC4
Equipment type Enclosed compressor–condenser unit
Available nominal supplies 12, 24 or 48 V DC
Maximum reference duty Up to 4.0 kW cooling
Operating roles Primary, secondary or anti-idle cooling
Suggested evaporator family EVK5, subject to system design

Enclosure and size

Enclosure and size
Construction 2 mm stainless steel

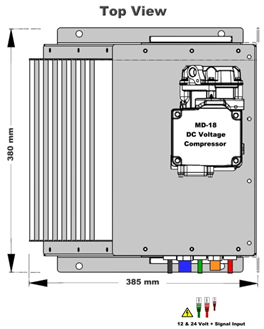

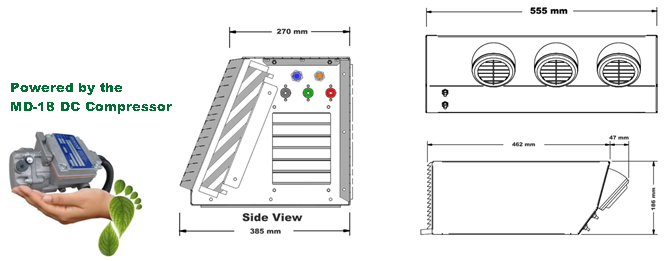

Nominal dimensions 385 × 380 × 430 mm
Reference mass 32 kg
Installation form External or service-compartment module
Evaporator Remote, supplied/configured separately

Documented performance references

Documented performance references
12 V / 18 cm³ at 2,000 rpm 6,830 BTU/h reference
24 V / 18 cm³ at 4,000 rpm 8,538 BTU/h reference
24 V / 24 cm³ at 6,000 rpm 11,953 BTU/h reference
Final output Depends on complete system and test conditions
Electrical input Configuration and operating-point dependent

Selection note: The listed BTU/h values are documented reference points for specific compressor speeds and configurations. They must not be applied to a different voltage, speed or heat-exchanger combination without engineering review.

Configure this product for your application

Request a product quote with your supply voltage, required cooling duty, ambient conditions, quantity and delivery location.

Delivery

Voltage

Product type

How it is used

,

Delivery cost Delivery is priced with your quote. Include your delivery address and order quantity when requesting a quote.
Delivery information Shipping, delivery times and returns

Manuals & drawings

View manuals and drawings (1)
