Rencool SP-18 Split DC Air Conditioning Module

Australian dollar ($) - AUD
  • Australian dollar ($) - AUD
  • United States dollar ($) - USD

Prices are shown in AUD. Australian GST is included where applicable.

Rencool SP-18 split DC air conditioning for cabins, sleeper compartments and equipment enclosures. Choose a 12 V or 24 V external compressor–condenser module, then pair it with a suitable wall- or ceiling-mounted evaporator for up to 4.0 kW system cooling duty.

Supply options
12 V / 24 V DC
Format
Compressor–condenser module
THIS PRODUCT ISCompressor + condenser module

Add a matched evaporator, controls and refrigerant lines to complete the system.

See what else you need ↓

Supplied to your requirements. Include the model, quantity, power supply and delivery destination.

Request a quote →
SKU: SP-18 Category: Brand:

BUY WITH CONFIDENCE

Is this the right part for your system?

This section separates the product from the rest of the system so you can see what you are buying and what still has to be matched.

THIS PRODUCT IS

Matched system or cooling kit

BEST FOR

Projects that need the major cooling components selected as one system rather than assembled from unrelated parts.

Included with this listing

  • The matched assemblies named in the product description
  • Configuration review before supply

Still required for a working system

  • Application-specific mounting and ducting
  • Power protection and vehicle-side cabling
  • Refrigerant lines, fittings and commissioning items unless expressly listed
  • Professional evacuation, leak test and refrigerant charge

Common options

  • Application-specific ducting and vents
  • Additional hose length or special fittings
  • Battery or alternator upgrade after load review

What may be retained

  • No existing components are assumed compatible. List anything you plan to retain when requesting a technical review.
Technical decision points
Product / modelRencool SP-18 Split DC Air Conditioning Module
Ordering SKUSP-18
Product roleMatched system or cooling kit
Purchase pathTechnical quotation required before supply.
Primary selectionCabin size, heat load and ambient; 12 V or 24 V supply and usable power; Component mounting locations
Final confirmationUse the model-specific technical tables on this page and confirm the complete system match before ordering.
Compatibility checklist before ordering
  • Cabin size, heat load and ambient
  • 12 V or 24 V supply and usable power
  • Component mounting locations
  • Hose lengths and duct routing
  • Engine-on, engine-off or continuous operation

Technical and procurement evidence

Public model-specific documents are not yet attached to this listing. Request the drawing, technical data, test evidence, traceability and document-control level required for your order or tender.

Ordering and delivery

Built and configured to order. Exact kit contents, lead time and freight pack are confirmed in the quotation. Freight is based on the packed consignment; large or configured products receive a confirmed pack plan before dispatch.

Request a technical quote

Product details

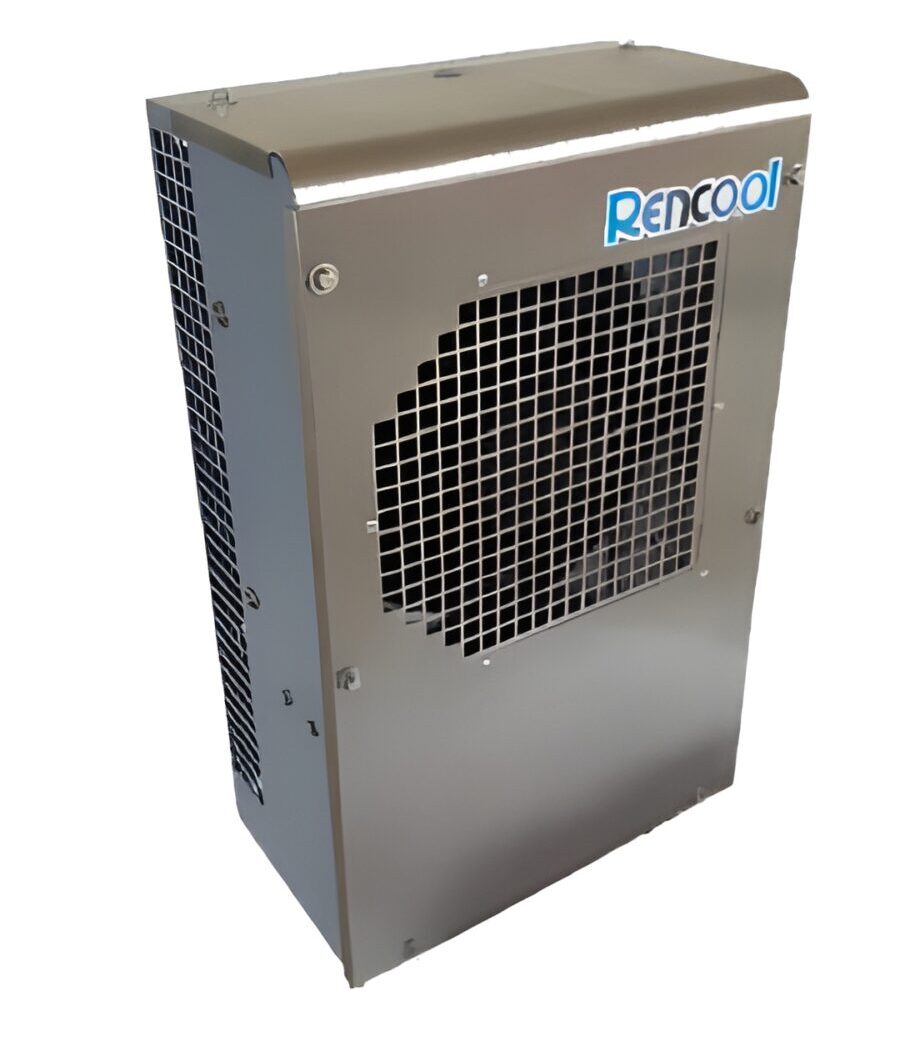

Flexible split-system cooling for cabins, sleeper compartments and equipment enclosures. The Rencool SP-18 combines an externally mounted electric compressor and condenser module with a separately positioned evaporator, giving installers the freedom to use available space without an engine-driven compressor.

Built for hard-working vehicles and equipment

  • Up to 4.0 kW system cooling duty: designed for high-load mobile and stationary applications in ambient conditions up to 45 °C at the published duty point.
  • 12 V and 24 V DC versions: choose the version that matches the vehicle or equipment electrical system.
  • Split-system freedom: position the outdoor module and cabin evaporator where airflow, service access and available space suit the project.
  • Heavy-duty stainless enclosure: the published series specification identifies 2 mm stainless-steel construction for demanding environments.

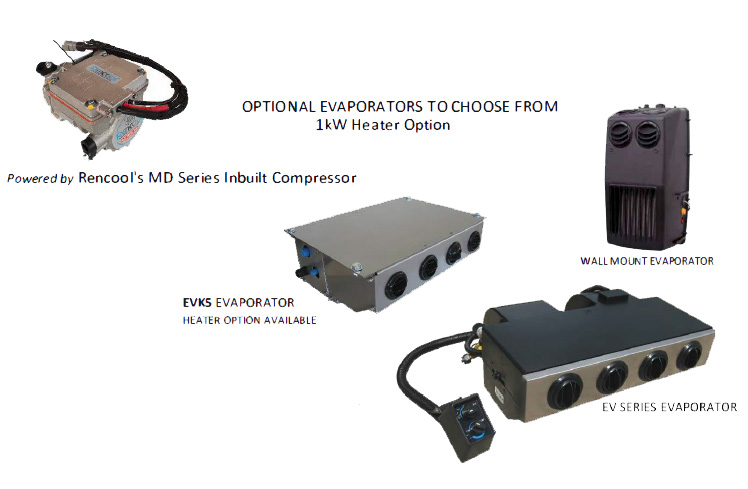

  • Multiple evaporator options: pair the module with a suitable wall- or ceiling-mounted evaporator; the Rencool EVK5 is a recommended match.
  • Primary, anti-idle or auxiliary use: configure the system around the vehicle duty cycle and available electrical power.

Universal applications

  • Truck sleeper cabs, service bodies and specialist commercial vehicles
  • Mining, civil, agricultural and off-highway equipment cabins
  • Motorsport support vehicles, race transporters and custom builds
  • Motorhomes, expedition vehicles, marine cabins and mobile workspaces
  • Communications shelters, refuge shelters and equipment enclosures
  • Anti-idle, auxiliary and backup cabin-cooling projects

System specifications

Rencool SP-18 split air conditioning system specifications
System type Split DC air conditioning system with external compressor–condenser module and separate cabin evaporator
Published system cooling duty 4.0 kW
Electrical versions 12 V DC and 24 V DC; separate versions
Published duty-point ambient 4.0 kW cooling at up to +45 °C ambient
Published operating ambient −5 to +55 °C reference range
Construction 2 mm stainless-steel enclosure
Air circuit Recirculating cabin air; the EVK5 option uses a removable, washable intake filter
System arrangement Primary, anti-idle, auxiliary or project-configured secondary cooling

Cooling and compressor performance

Version Compressor displacement Published compressor capacity reference Speed range
SP-18 12 V 18 cm³/rev 3.8 kW Programmed operation up to 6,000 rpm
SP-18 24 V 24 cm³/rev 4.4 kW Programmed operation up to 6,000 rpm

The complete-system design target is 4.0 kW. Compressor reference capacity is not the same as delivered cabin capacity. Actual output and current draw depend on the selected evaporator, condenser airflow, refrigerant circuit, ambient temperature, cabin heat load, insulation and control strategy.

Electrical planning

Electrical item 12 V version 24 V version
Published supply range Approximately 10.5 ±0.5 to 14.9 V DC Approximately 21.5 ±0.5 to 29.7 V DC
Published complete-system current Confirm for the selected configuration 75 A at +45 °C, 5,000 rpm and 220 psi head-pressure reference
Published compressor current Confirm for the selected configuration 55 A at +45 °C and 5,000 rpm reference
Main bus protection reference 150 A internal main bus fuse in the published system specification; external protection and cable size remain installation-specific
Power source Vehicle or machine alternator/battery supply sized for compressor, condenser fan, evaporator blower and other simultaneous loads

Electrical values are planning references. Cable length, voltage drop, duty cycle, ambient temperature, conductor routing and charging-system capacity must be included in final electrical design.

Airflow, controls and protection

Condenser fan reference Single flat-blade pusher fan; 1,228 cfm published reference
24 V condenser-fan reference 8.5 A / 162 W, IP68

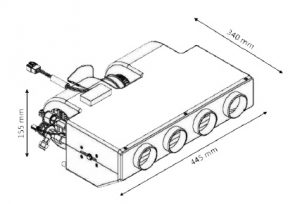

EVK5 blower reference Two-barrel blower pack, 280 cfm, three speeds, IP54
Temperature control Thermostat control with evaporator de-ice function when supplied as a matched system
Pressure protection reference High- and low-pressure cut-out included in the published system design; confirm switch settings for the supplied revision
Compressor ingress protection IP67 published reference
Harness reference System harness with sealed DT-style connections; connector arrangement is confirmed for the ordered revision

Physical and installation references

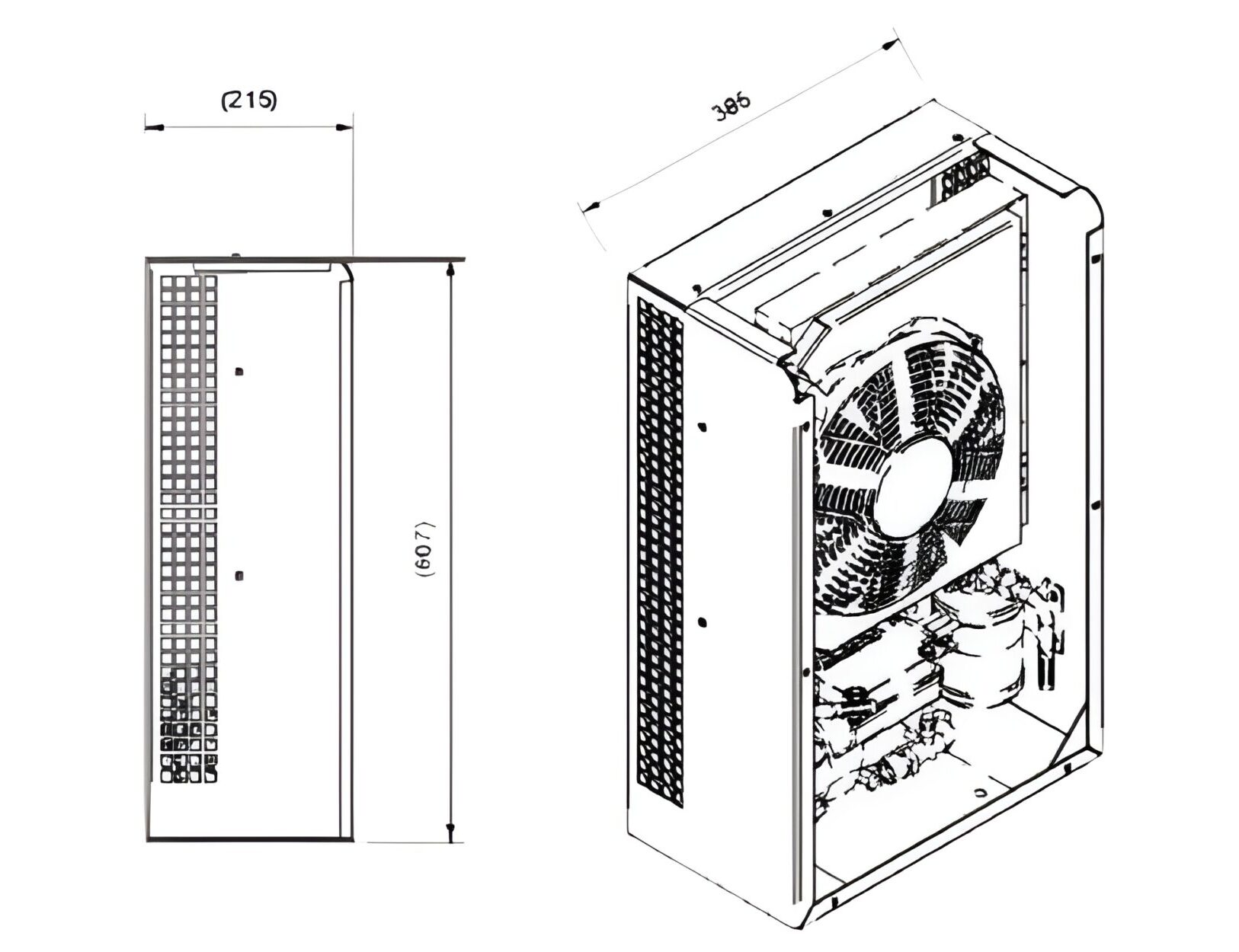

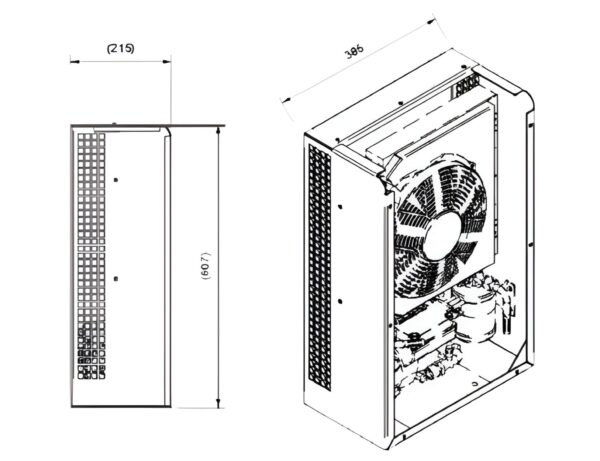

Compressor–condenser housing drawing Approximately 607 × 385 × 215 mm; use the supplied production drawing for final mounting
Published system assembly weight Approximately 32 kg; packed shipping weight is confirmed with the quotation
Compressor weight reference Approximately 6.5 kg
Evaporator compatibility Wall- or ceiling-mounted evaporators up to approximately 5 kW duty; match coil, blower, expansion device and controls to the system
Extended hose runs Oil separation and oil-return provisions are available where circuit length and routing require them
Service access Allow clearance for condenser airflow, panel removal, electrical connections and refrigerant service points

System requirements

Mount the compressor–condenser module where it receives clean, unrestricted airflow, then position the selected evaporator where cooled air can reach the occupied space. Connect the matched refrigeration circuit, controls and correctly sized DC supply to create a compact system that works around the vehicle or enclosure layout.

Plan before ordering Information to confirm
Cooling duty Cabin or enclosure volume, insulation, glazing, solar load, equipment heat and required pull-down time
Electrical system 12 V or 24 V architecture, alternator output, battery capacity, engine-off runtime and simultaneous vehicle loads
Evaporator Mounting style, available space, airflow direction, ducting and condensate-drain route
Outdoor module Mounting position, condenser inlet/outlet clearance, debris exposure and service access
Refrigerant circuit Hose length, vertical lift, fitting orientation, receiver-drier, expansion device and oil-return requirements

Technical selection: Confirm the module, cabin evaporator, controls and connecting circuit as one matched system. Heat-exchanger duty, electrical demand, hose routing and oil return depend on the final configuration.

Professional installation is required. Final mounting, wiring, fusing, refrigerant charge, pressure protection and commissioning must suit the selected components and the supplied production revision.

Configure the SP-18 for your application

This product is supplied to project requirements. Include the operating voltage, cabin or enclosure details, preferred evaporator position, expected ambient temperature, quantity and delivery location so the correct Rencool configuration can be quoted.

Request an SP-18 system quotation

Delivery

Voltage

Product type

How it is used

,

Delivery cost Delivery is priced with your quote. Include your delivery address and order quantity when requesting a quote.
