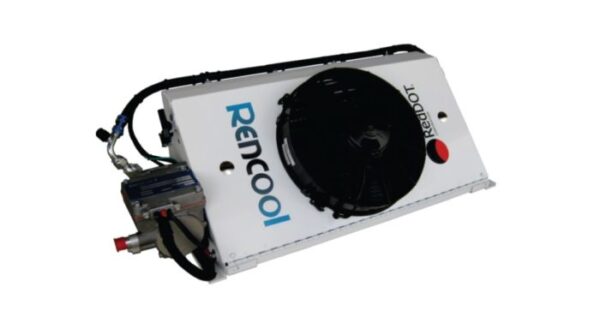

Rencool MD-RC4 12 / 24 V Compressor–Condenser Unit product view

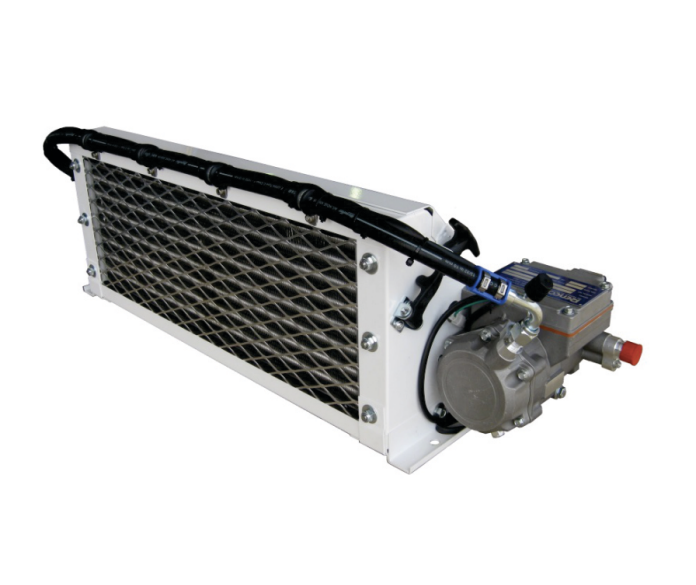

Rencool MD-RC4 12 / 24 V Compressor–Condenser Unit product view 2
Rencool MD-RC4 12 / 24 V Compressor–Condenser Unit product view 3

Rencool MD-RC4 12 / 24 V Compressor–Condenser Unit

Guide price: $8,223.00

Australian dollar ($) - AUD
  • Australian dollar ($) - AUD
  • United States dollar ($) - USD

Prices are shown in AUD. Australian GST is included where applicable.

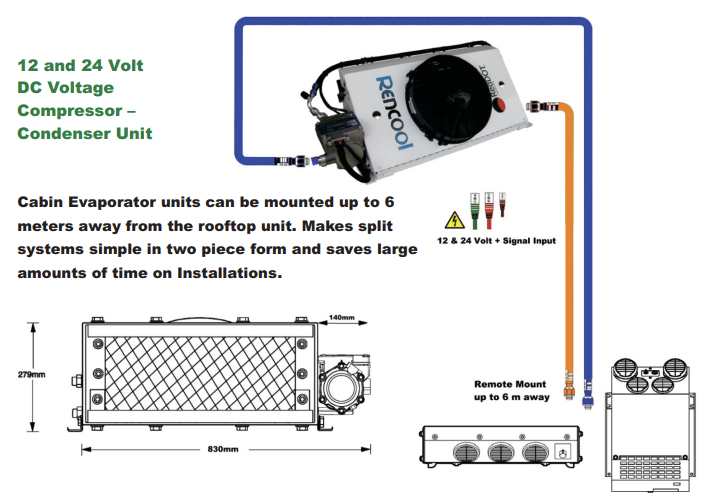

Combine the electric compressor and condenser outside the cabin. Rencool MD-RC4 supports separate 12 and 24 V split HVAC builds with an 830 × 311 × 279 mm equipment envelope.

Supply options
12 V / 24 V DC
Format
Compressor–condenser module
THIS PRODUCT ISCompressor + condenser module

Add a matched evaporator, controls and refrigerant lines to complete the system.

See what else you need ↓

Supplied to your requirements. Include the model, quantity, power supply and delivery destination.

Request a quote →
SKU: MD-RC4 Category: Brand:

BUY WITH CONFIDENCE

Is this the right part for your system?

This section separates the product from the rest of the system so you can see what you are buying and what still has to be matched.

THIS PRODUCT IS

Compressor-condenser module

BEST FOR

Split systems that need the compressor and heat rejection packaged together while using a remote evaporator.

Included with this listing

  • Compressor-condenser module described on the listing
  • Integrated components specifically named on the product page

Still required for a working system

  • Compatible evaporator and expansion device
  • Receiver drier where required by the circuit
  • High/low-pressure protection and thermostat demand
  • Refrigerant lines and fittings
  • Electrical supply, fuse and vehicle-side controls

Common options

  • Matched evaporator
  • Control panel or thermostat
  • Hose and fitting package

What may be retained

  • An existing compatible evaporator and cabin controls may be retained after duty, metering and protection checks.
Technical decision points
Product / modelRencool MD-RC4 12 / 24 V Compressor–Condenser Unit
Ordering SKUMD-RC4
Product roleCompressor-condenser module
Purchase pathTechnical quotation required before supply.
Primary selectionVoltage and current capacity; Cooling duty and matching evaporator; Refrigerant and connection sizes
Final confirmationUse the model-specific technical tables on this page and confirm the complete system match before ordering.
Compatibility checklist before ordering
  • Voltage and current capacity
  • Cooling duty and matching evaporator
  • Refrigerant and connection sizes
  • Condenser airflow and mounting clearance
  • Control and pressure-safety logic

Commonly matched products

Rencool EV2208 12 V 5 kW Underdash EvaporatorRencool Receiver Drier with Mounting BracketRencool HP/LP Pressure Safety SwitchRencool MD-Series Hose & Fitting Kit

These are common system roles, not a promise that every listed part fits every application. Match voltage, capacity, refrigerant circuit and connections.

Technical and procurement evidence

Public model-specific documents are not yet attached to this listing. Request the drawing, technical data, test evidence, traceability and document-control level required for your order or tender.

Ordering and delivery

Configured to order. The evaporator match and electrical/refrigerant interfaces are confirmed in the quotation. Freight is based on the packed consignment; large or configured products receive a confirmed pack plan before dispatch.

Request a technical quote

Product details

MD-RC4 combines the electric compressor and condenser in one external assembly. It suits split A/C layouts where the cabin air unit needs its own mounting position in a vehicle or machine.

Compressor and condenser combined in one external module.

Separate 12 V and 24 V configurations.

Split layout leaves freedom to position the cabin evaporator.

Why specify this product

The product is the compressor–condenser assembly; the cabin evaporator and connecting circuit are selected separately. Oil separation is an available system option. Compressor orientation, hose routing and condenser airflow must suit the installation.

Common applications

  • Truck and sleeper-cab HVAC
  • Mining and construction machinery
  • Agricultural and off-road equipment
  • Marine and specialist vehicle projects

Configuration and scope

Select the voltage-specific module with a compatible evaporator, refrigerant circuit, controls, cables and protection. Confirm mounting position, condenser airflow, service clearances and total electrical load.

Technical specifications

Product & configuration

Product & configuration
Assembly type Compressor–condenser module
Compressor family MD series
Oil separation Available by system enquiry

Electrical & controls

Electrical & controls
Supply options 12 V / 24 V DCSeparate versions.

Dimensions & installation

Dimensions & installation
Mounting Specified for the installation
Assembly dimensions 830 × 311 × 279 mmEquipment dimensions; allow additional space for connections and servicing.

Selection checklist

Provide the cabin heat load, evaporator choice, refrigerant, mounting position, maximum ambient temperature and expected engine-off runtime. These inputs determine the correct voltage-specific module and electrical supply.

Selection note: The 830 × 311 × 279 mm figure is the equipment envelope. Allow extra space for airflow, hoses, electrical connections and maintenance, and confirm the exact quoted configuration before fabrication.
