Rencool BCA-4 Compressor–Condenser Module product view
Rencool BCA-4 Compressor–Condenser Module product view 2
Rencool BCA-4 Compressor–Condenser Module product view 3
Rencool BCA-4 Compressor–Condenser Module product view 4

Rencool BCA-4 Compressor–Condenser Module

Australian dollar ($) - AUD
  • Australian dollar ($) - AUD
  • United States dollar ($) - USD

Prices are shown in AUD. Australian GST is included where applicable.

Configure rugged 12 or 24 V split air conditioning with the Rencool BCA-4 compressor–condenser module, supporting 3–5 kW cooling-system duty.

Supply
24 V DC
Format
Compressor–condenser module
THIS PRODUCT ISCompressor + condenser module

Add a matched evaporator, controls and refrigerant lines to complete the system.

See what else you need ↓

Supplied to your requirements. Include the model, quantity, power supply and delivery destination.

Request a quote →
SKU: BCA-4 Category: Brand:

BUY WITH CONFIDENCE

Is this the right part for your system?

This section separates the product from the rest of the system so you can see what you are buying and what still has to be matched.

THIS PRODUCT IS

Compressor-condenser module

BEST FOR

Split systems that need the compressor and heat rejection packaged together while using a remote evaporator.

Included with this listing

  • Compressor-condenser module described on the listing
  • Integrated components specifically named on the product page

Still required for a working system

  • Compatible evaporator and expansion device
  • Receiver drier where required by the circuit
  • High/low-pressure protection and thermostat demand
  • Refrigerant lines and fittings
  • Electrical supply, fuse and vehicle-side controls

Common options

  • Matched evaporator
  • Control panel or thermostat
  • Hose and fitting package

What may be retained

  • An existing compatible evaporator and cabin controls may be retained after duty, metering and protection checks.
Technical decision points
Product / modelRencool BCA-4 Compressor–Condenser Module
Ordering SKUBCA-4
Product roleCompressor-condenser module
Purchase pathTechnical quotation required before supply.
Primary selectionVoltage and current capacity; Cooling duty and matching evaporator; Refrigerant and connection sizes
Final confirmationUse the model-specific technical tables on this page and confirm the complete system match before ordering.
Compatibility checklist before ordering
  • Voltage and current capacity
  • Cooling duty and matching evaporator
  • Refrigerant and connection sizes
  • Condenser airflow and mounting clearance
  • Control and pressure-safety logic

Commonly matched products

Rencool EV2208 12 V 5 kW Underdash EvaporatorRencool Receiver Drier with Mounting BracketRencool HP/LP Pressure Safety SwitchRencool MD-Series Hose & Fitting Kit

These are common system roles, not a promise that every listed part fits every application. Match voltage, capacity, refrigerant circuit and connections.

Technical and procurement evidence

Public model-specific documents are not yet attached to this listing. Request the drawing, technical data, test evidence, traceability and document-control level required for your order or tender.

Ordering and delivery

Configured to order. The evaporator match and electrical/refrigerant interfaces are confirmed in the quotation. Freight is based on the packed consignment; large or configured products receive a confirmed pack plan before dispatch.

Request a technical quote

Product details

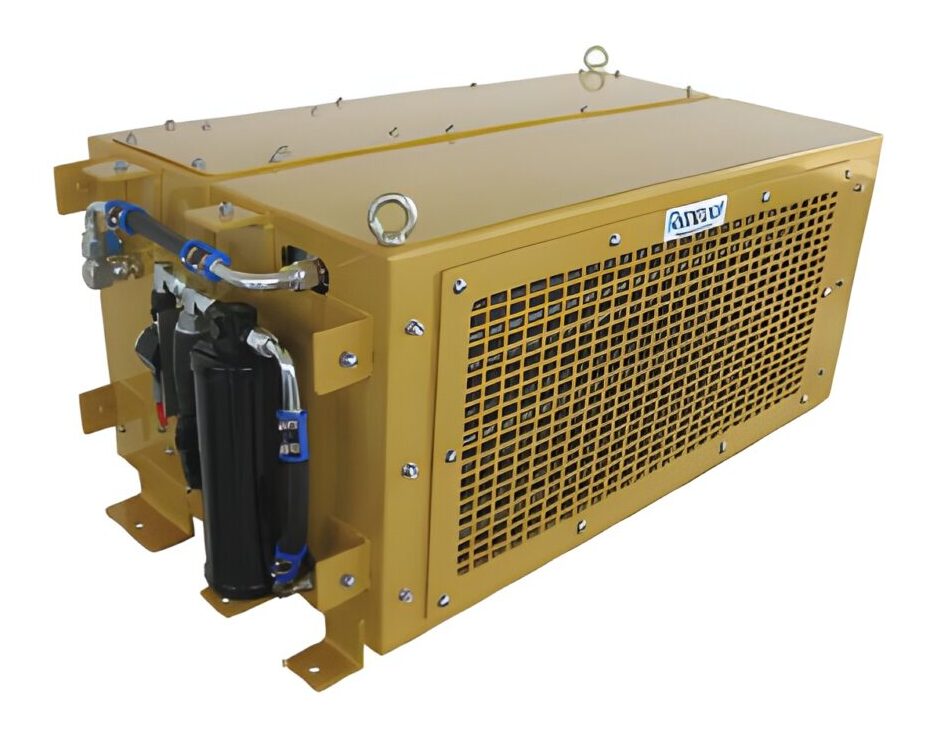

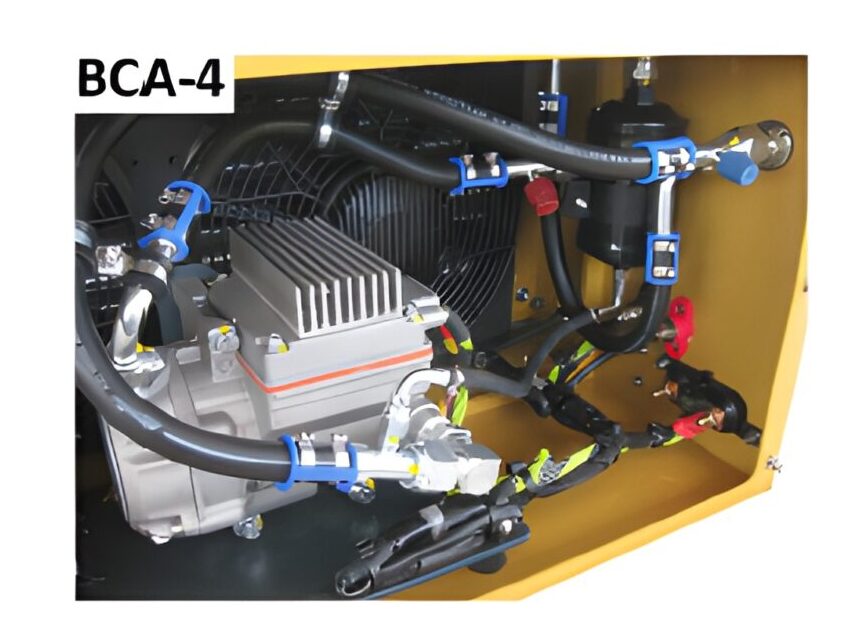

The Rencool BCA-4 is a compact compressor–condenser module for rugged 12 or 24 V split air-conditioning systems. Its stainless enclosure and high-capacity twin-fan condenser support 3–5 kW configurations for primary, secondary and anti-idle cooling.

Compact external module keeps refrigeration heat and noise outside the cabin.

12 and 24 V options support a wide range of vehicles and equipment.

Rugged construction is suited to high-ambient and heavy-duty installations.

Why specify the BCA-4

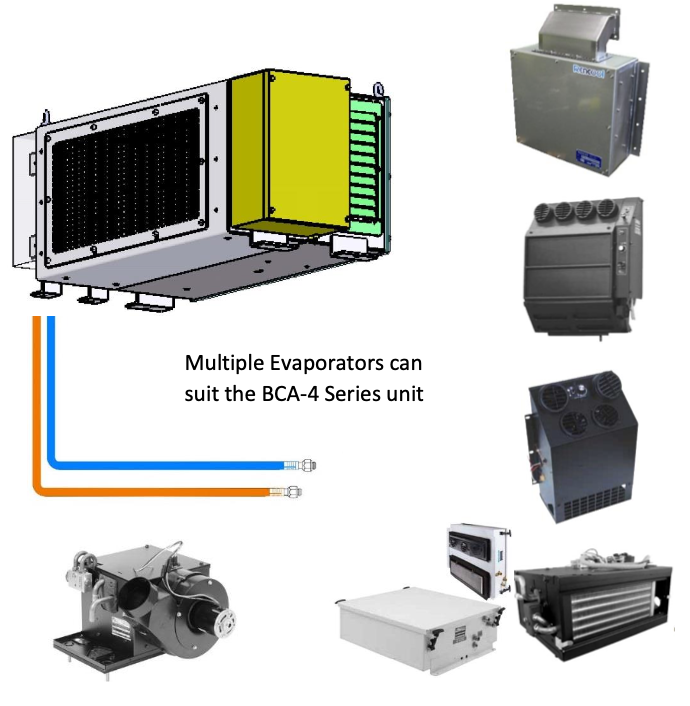

The BCA-4 gives designers a durable core for custom cabin HVAC without forcing a fixed evaporator layout. Choose the evaporator and outlets around the operator space, then position the compressor–condenser module where cooling airflow and maintenance access are strongest.

Common applications

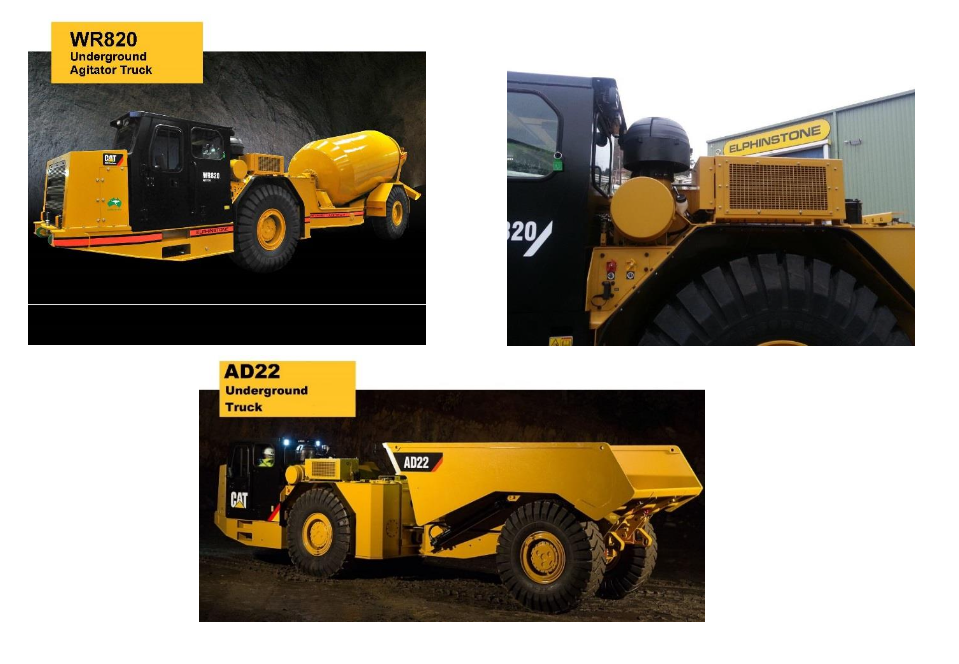

  • Underground and surface mining equipment
  • Construction, agricultural and forestry machinery
  • Trucks, utility vehicles and mobile workshops
  • Marine and specialist transport cabins
  • Anti-idle and auxiliary cooling conversions

Technical specifications

Product configuration

Product configuration
Model BCA-4
Equipment type Compressor–condenser module
Nominal supplies 12 or 24 V DC
Reference system duty 3–5 kW cooling
Compressor family Rencool MD series
Operating roles Primary, secondary or anti-idle cooling

Construction and heat rejection

Construction and heat rejection
Enclosure 3 mm 304 stainless steel
Condenser 11 kW class twin-fan assembly
High-ambient reference Applications up to +60 °C, subject to configuration
Oil management Oil separation fitted as standard
Evaporator capacity Up to 6 kW / 23,000 BTU/h class available

System integration

System integration
Evaporator Remote, selected to application
Controls Thermostat and compressor control required
Protection Pressure, over-current and isolation protection required
Heating option EVK5-H package can be configured with 800 W heater
Ordering Voltage, duty and evaporator confirmed by quote

Selection note: High-ambient and maximum evaporator figures require the correct configuration and adequate airflow. Confirm the complete system duty and electrical supply before installation.

Configure this product for your application

Request a product quote with your supply voltage, required cooling duty, ambient conditions, quantity and delivery location.

Delivery

Voltage

Product type

How it is used

,

Delivery cost Delivery is priced with your quote. Include your delivery address and order quantity when requesting a quote.
Delivery information Shipping, delivery times and returns
