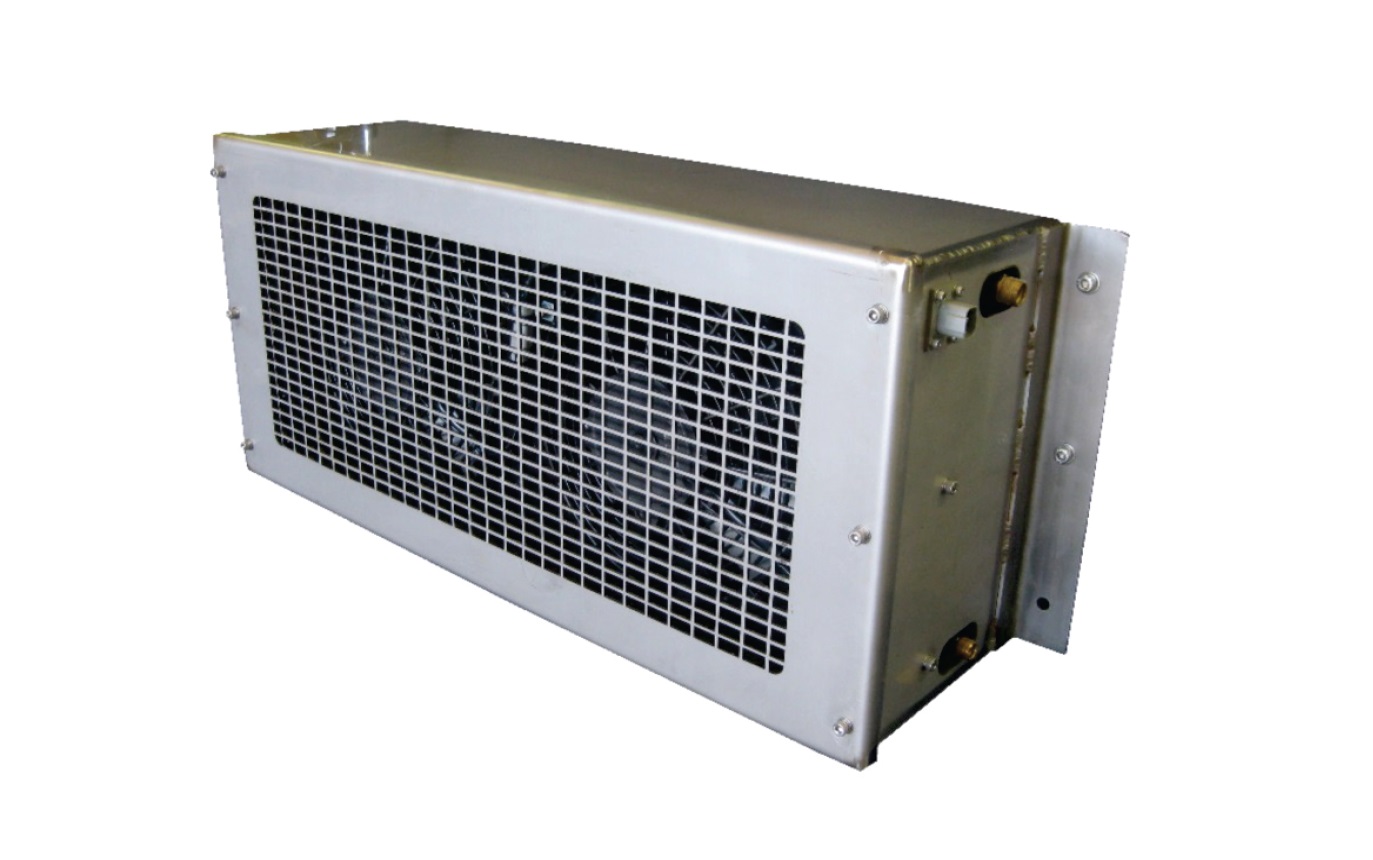

Rencool RCK6 11 kW Heavy-Duty Condenser product view

Rencool RCK6 11 kW Heavy-Duty Condenser

Australian dollar ($) - AUD
  • Australian dollar ($) - AUD
  • United States dollar ($) - USD

Prices are shown in AUD. Australian GST is included where applicable.

Reject heat reliably in harsh mobile environments with the Rencool RCK6. The 11 kW-class condenser uses a 3 mm 304 stainless enclosure and 12 or 24 V fan options.

THIS PRODUCT ISCondenser component

Match voltage, heat-rejection capacity, refrigerant, airflow and fittings to the full system.

Supplied to your requirements. Include the model, quantity, power supply and delivery destination.

Request a quote →
SKU: RCK6 Category: Brand:

BUY WITH CONFIDENCE

Is this the right part for your system?

This section separates the product from the rest of the system so you can see what you are buying and what still has to be matched.

THIS PRODUCT IS

Condenser or condenser assembly

BEST FOR

Rejecting refrigerant heat from a matched compressor/evaporator circuit with the specified voltage, airflow and capacity.

Included with this listing

  • Condenser assembly shown for the selected model
  • Fans or shroud only where expressly shown and stated

Still required for a working system

  • Compatible compressor and evaporator
  • Receiver drier and expansion device
  • High/low-pressure protection
  • Refrigerant hoses/fittings
  • Fan switching, fuse and wiring

Common options

  • Receiver drier
  • Fan-control relay or pressure switch
  • Mounting and stone protection

What may be retained

  • The existing compressor, evaporator and controls may be retained when capacity, refrigerant and fittings are compatible.
Technical decision points
Product / modelRencool RCK6 11 kW Heavy-Duty Condenser
Ordering SKURCK6
Product roleCondenser or condenser assembly
Purchase pathTechnical quotation required before supply.
Primary selectionHeat-rejection capacity; Fan voltage and current; Airflow direction and unrestricted intake/exhaust
Final confirmationUse the model-specific technical tables on this page and confirm the complete system match before ordering.
Compatibility checklist before ordering
  • Heat-rejection capacity
  • Fan voltage and current
  • Airflow direction and unrestricted intake/exhaust
  • Port size and hose routing
  • Mounting envelope and service access

Commonly matched products

Rencool MD18-2 12 V Electric CompressorRencool MD18-4 24 V Electric CompressorRencool MD24A6 24 V Electric CompressorRencool Receiver Drier with Mounting BracketRencool HP/LP Pressure Safety SwitchRencool EV2208 12 V 5 kW Underdash Evaporator

These are common system roles, not a promise that every listed part fits every application. Match voltage, capacity, refrigerant circuit and connections.

Technical and procurement evidence

Public model-specific documents are not yet attached to this listing. Request the drawing, technical data, test evidence, traceability and document-control level required for your order or tender.

Ordering and delivery

Availability and lead time are confirmed at order review. Verify the exact voltage variant before checkout. Freight is based on the packed consignment; large or configured products receive a confirmed pack plan before dispatch.

Request a technical quote

Product details

The Rencool RCK6 is an 11 kW-class external condenser engineered for heavy machinery, corrosive environments and demanding mobile refrigeration circuits. A 3 mm 304 stainless enclosure protects the copper-and-aluminium heat exchanger while supporting serviceable outside-air cooling.

11 kW reference heat-rejection capability for heavy-duty systems.

3 mm 304 stainless-steel enclosure resists harsh operating environments.

12 and 24 V fan options match common mobile electrical supplies.

Why specify the RCK6

Choose the RCK6 when a standard automotive condenser lacks the construction, surface area or cleanability required for industrial duty. The fin pattern and copper-and-aluminium core are intended to transfer heat efficiently while shedding airborne material more readily.

Common applications

  • Underground and surface mining equipment
  • Dozers, graders, loaders and excavators
  • Locomotives and heavy rail machinery
  • Large communications and refuge shelters
  • Marine, defence and high-ambient industrial systems

Technical specifications

Performance and configuration

Performance and configuration
Model RCK6
Equipment type External heavy-duty condenser assembly
Reference heat-rejection duty 11 kW
Nominal fan supplies 12 or 24 V DC
System roles Primary, secondary or anti-idle refrigeration systems

Construction

Construction
Enclosure 3 mm 304 stainless steel
Heat exchanger Copper tube and aluminium fin
Fin design Open pattern for heat transfer and debris shedding
Mounting environment External mobile and industrial installations
System boundary Compressor, evaporator and controls specified separately

Physical and installation data

Physical and installation data
Overall dimensions 830 × 360 × 230 mm
Airflow Provide unobstructed intake and discharge
Cleaning access Required on both faces of the core
Electrical protection Fan circuit matched to selected voltage
Service clearance Allow fan, fittings and cover removal

Selection note: The 11 kW value is a condenser heat-rejection reference. Final selection must account for evaporator load plus compressor heat at the expected ambient temperature and refrigerant operating point.
