Rencool MD18-4 24 V Electric Compressor
$2,143.90
Australian dollar ($) - AUD
Prices are shown in AUD. Australian GST is included where applicable.
Build high-output electric air conditioning into a 24 V vehicle or machine with the compact Rencool MD18-4. Variable-speed operation, soft start and up to 2.90 kW nominal cooling make it ideal for commercial vehicles, equipment and custom HVAC systems.
- Supply
- 24 V DC
- Displacement
- 18 cm³/rev
THIS PRODUCT ISCompressor only
Build it into a matched refrigerant circuit or use it to replace a compatible compressor.
See what else you need ↓BUY WITH CONFIDENCE
Is this the right part for your system?
This section separates the product from the rest of the system so you can see what you are buying and what still has to be matched.
24 V custom vehicle, truck and compact machinery systems needing the wider 1,500–6,000 rpm range and up to 2.90 kW reference cooling.
Included with this listing
- Rencool MD18-4 24 V compressor with integrated controller
- Compressor-side electrical leads/connectors as supplied
Still required for a working system
- 24 V condenser and evaporator sized for the duty
- Receiver drier and correctly selected expansion valve
- HP/LP pressure safety switch
- MD-series control harness or equivalent reviewed control circuit
- Compressor bracket, hoses/fittings, main fuse and correctly sized cable
Common options
- Compressor mounting bracket
- Matched hose and fitting package
- Model-specific control harness
- Application-specific condenser and evaporator upgrades
What may be retained
- Existing condenser, evaporator, cabin controls and refrigerant lines may be retained only after capacity, condition, refrigerant, oil and connection compatibility are verified.
| Product / model | Rencool MD18-4 24 V Electric Compressor |
|---|---|
| Ordering SKU | MD18A6-1 |
| Product role | Electric refrigerant compressor |
| Purchase path | Available for online checkout when destination freight is returned. |

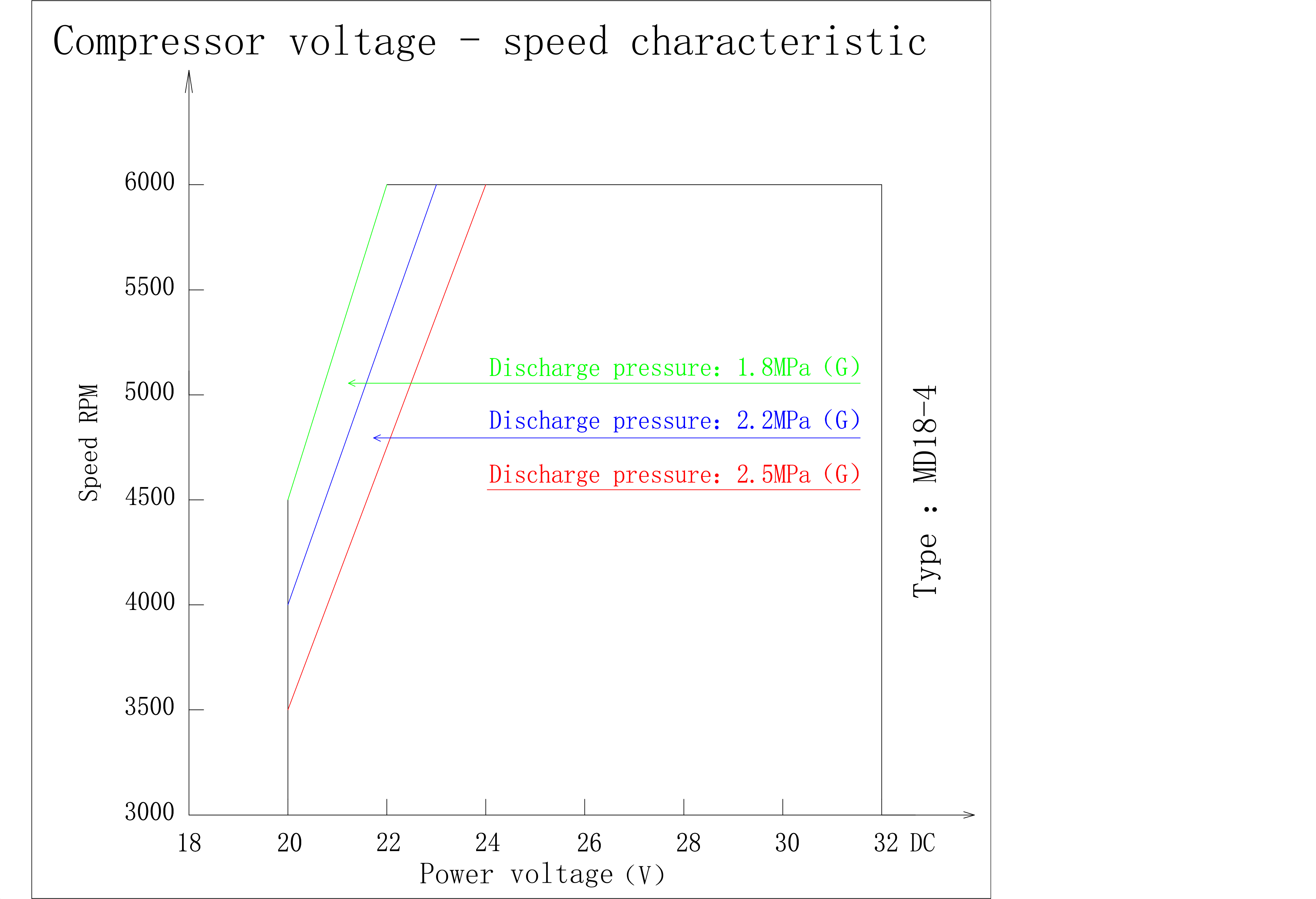

| Supply | 24 V DC; documented operating range 20–31 V |
| Displacement | 18 cc/rev |
| Speed range | 1,500–6,000 rpm |

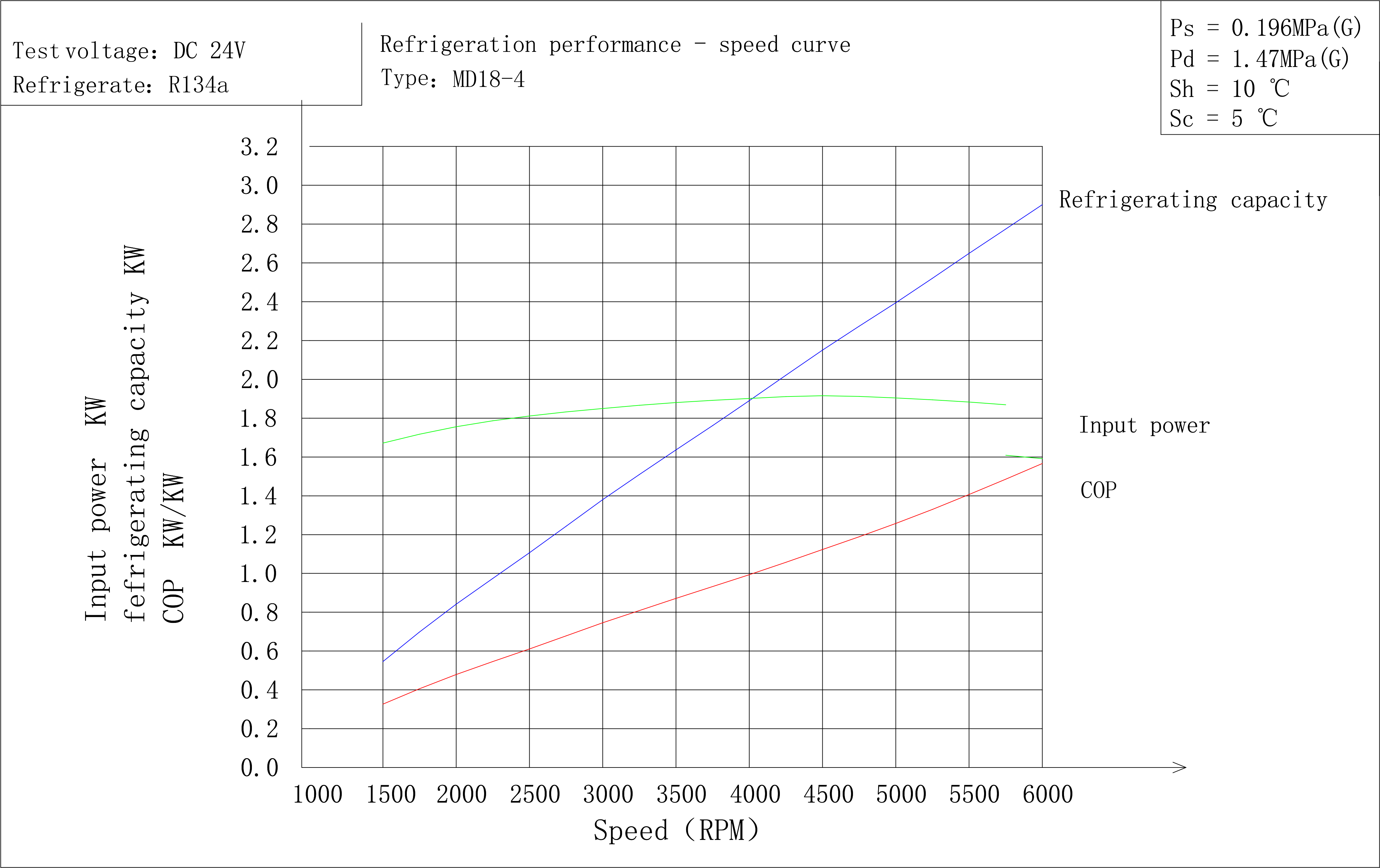

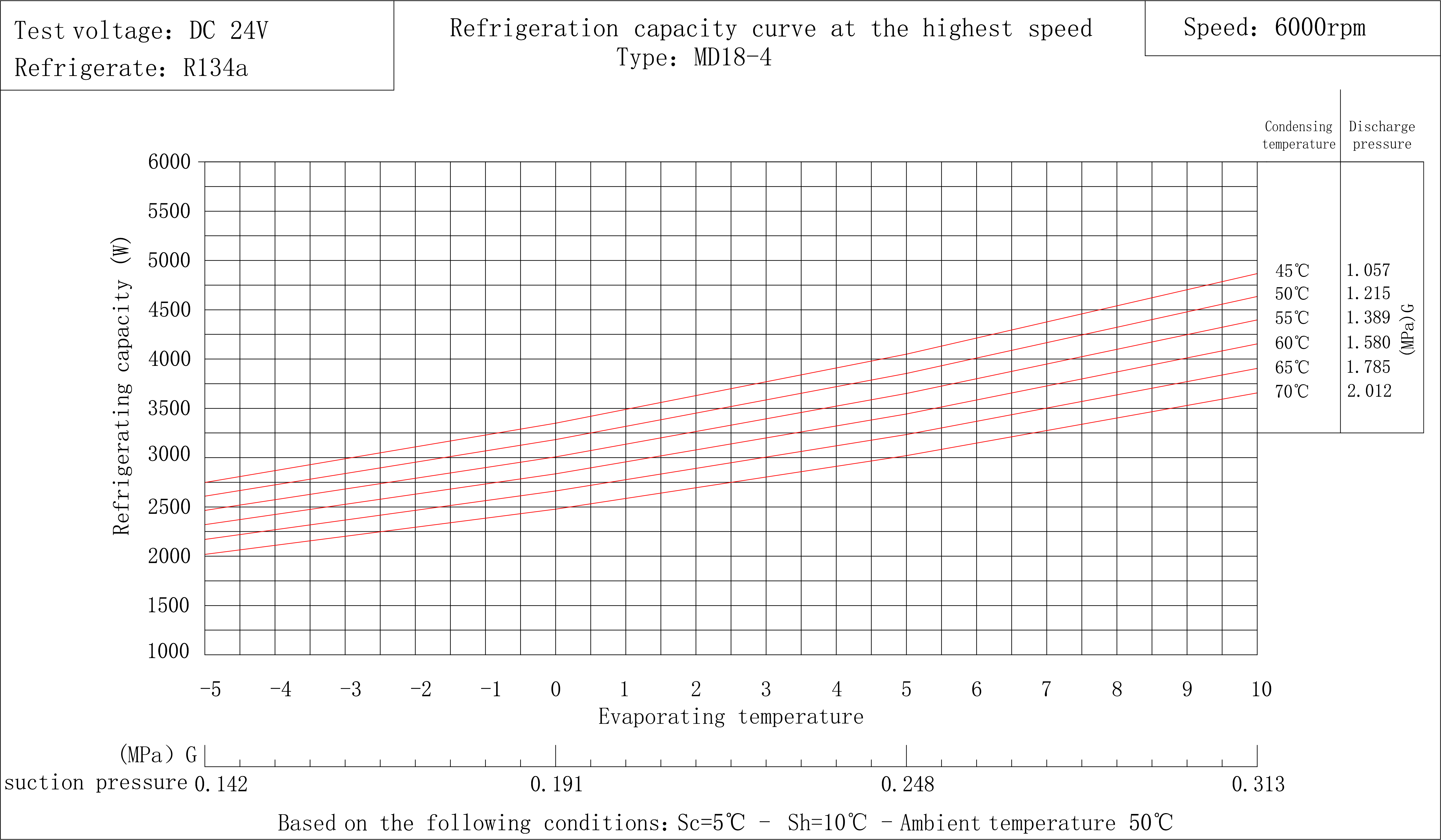

| Reference cooling | 1.38 / 1.89 / 2.90 kW at 3,000 / 4,000 / 6,000 rpm |
| Rated current | 65 A at 6,000 rpm |
| Refrigerant / oil charge | R134a / 100 cc oil charge in the reference data |
| Protection | Soft start, internal controller and IP68 rating stated in the technical sheet |
Compatibility checklist before ordering
- System voltage and continuous current
- Required cooling duty at the intended ambient
- Refrigerant, oil and metering device

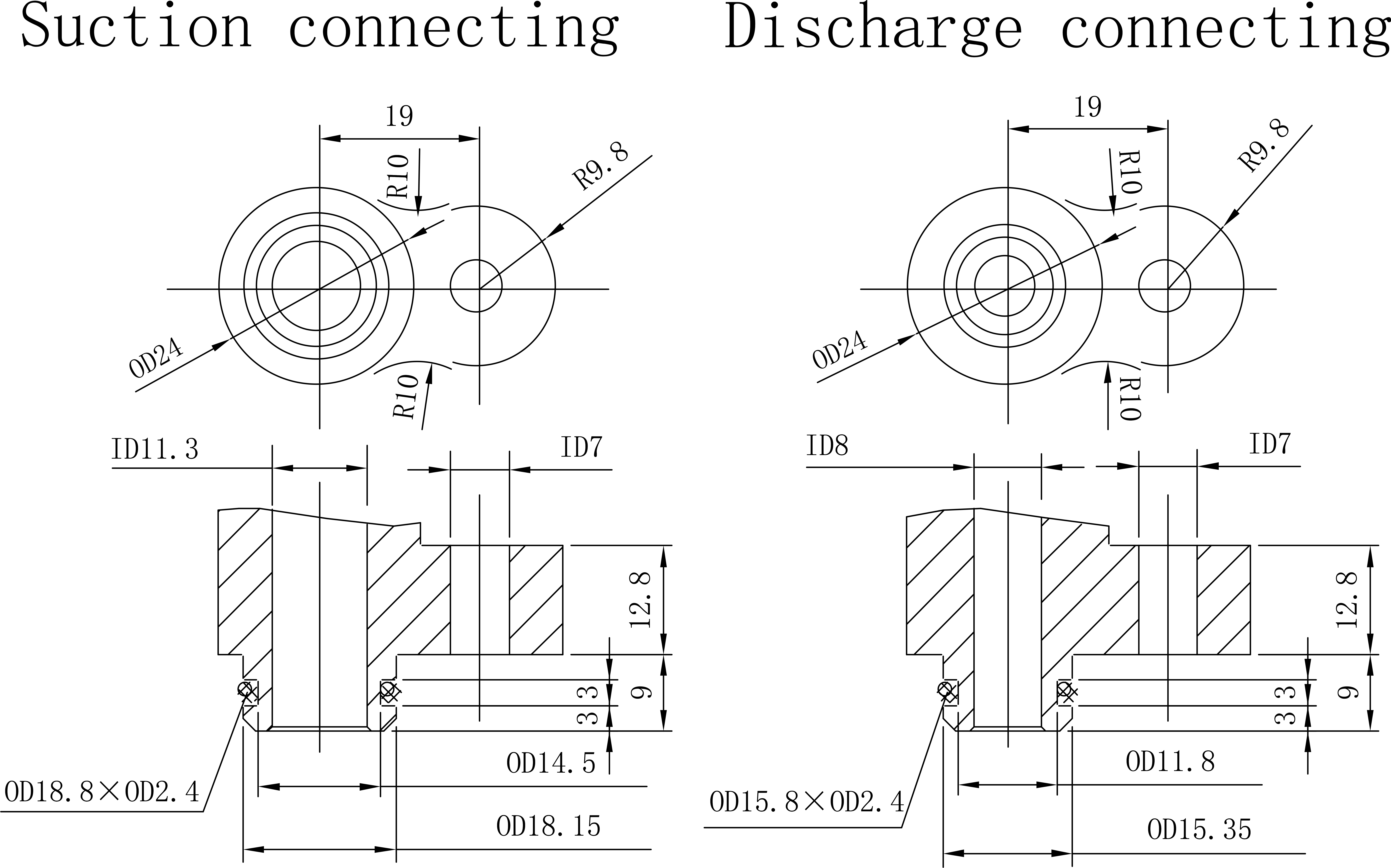

- Suction/discharge connections
- Control signal and pressure-protection logic
Technical documents
Ordering and delivery
Compressor orders are reviewed against voltage and application details. Lead time is confirmed with the order or quotation. Freight is based on the packed consignment; large or configured products receive a confirmed pack plan before dispatch.
SYSTEM BUILDER
What else do I need?
Choose the route that matches your project. The compressor can replace a compatible unit, power a custom split system, or form part of a complete package.
Connect to existing A/C
Use the existing condenser, evaporator and controls only after confirming capacity, R134a compatibility, oil management, pressure protection and electrical load.
Build a new split system
Add the matched heat exchangers, protection, controls, hoses and mounting hardware shown below.
Choose a complete kit
If you do not want to engineer every component, start with a packaged system sized for the cabin and duty cycle.
For a new MD-series split system
1. CondenserChoose the matching 12 V or 24 V RNC-105 version.View product →2. Evaporator & controlsEV2208 is the compact 12 V option; choose a matched-voltage evaporator for other systems.View product →3. Receiver drierRequired in the standard TX-valve circuit.View product →4. Pressure safety switchRequired unless equivalent pressure protection already exists.View product →5. Wiring harnessRecommended to simplify thermostat, relay and safety integration.View product →6. Hose & fitting kitStandard #6, #8 and #10 hose package for a new split system.View product →7. Mounting bracketPurpose-built bracket for MD18, MD24 and MD27 compressors.View product →
Required for a new buildRecommendedApplication dependent
Final system design: A qualified automotive A/C technician must confirm refrigerant charge, TX valve, hose routing, oil balance, pressure settings and electrical cable/fuse sizing.
CHOOSE THE INSTALLATION ROUTE
Adding A/C or retaining the factory circuit?
Use the new-system guide when the vehicle has no A/C. Use the existing-circuit guide when retaining compatible factory heat exchangers and controls.
Product details
Delivery
| Voltage | |
|---|---|
| Product type | |
| How it is used | Build a new system, Integrate with existing A/C, Replace or upgrade a component |
| Delivery cost | Enter your delivery address at checkout to see available shipping services and costs. If no service is shown, request a delivery quote. |
| Delivery information | Shipping, delivery times and returns |
Manuals & drawings
View manuals and drawings (2)
- MD series installation manualJune 2020 · MD series. Match the compressor and controller shown in the manual.
- MD-B mounting bracket drawingMD-series bracket geometry. Check mounting centres against the selected compressor.
