Rencool EVK6 External 6 kW Cabin Evaporator product view
Rencool EVK6 External 6 kW Cabin Evaporator product view 2

Rencool EVK6 External 6 kW Cabin Evaporator

Australian dollar ($) - AUD
  • Australian dollar ($) - AUD
  • United States dollar ($) - USD

Prices are shown in AUD. Australian GST is included where applicable.

Preserve cabin space with the externally mounted Rencool EVK6. The heavy-duty 6 kW evaporator delivers up to 800 CFM through a three-vent air-ram interface.

Supply options
12 V / 24 V DC
THIS PRODUCT ISEvaporator component

Match voltage, cooling capacity, refrigerant metering and controls to the full system.

Supplied to your requirements. Include the model, quantity, power supply and delivery destination.

Request a quote →
SKU: EVK6 Category: Brand:

BUY WITH CONFIDENCE

Is this the right part for your system?

This section separates the product from the rest of the system so you can see what you are buying and what still has to be matched.

THIS PRODUCT IS

Cabin evaporator or evaporator/heater

BEST FOR

Delivering cooled air inside the cabin as part of a matched refrigerant circuit.

Included with this listing

  • Evaporator assembly shown for the selected model
  • Louvers, controls or heater function only where expressly described

Still required for a working system

  • Compatible compressor and condenser
  • Receiver drier and correctly selected expansion device
  • High/low-pressure protection
  • Refrigerant hoses/fittings
  • Drain, wiring and ducting required by the installation

Common options

  • Control panel or thermostat
  • Ducting and vents
  • Heater integration where supported

What may be retained

  • The existing compressor and condenser may be retained when capacity, refrigerant, metering and control strategy are compatible.
Technical decision points
Product / modelRencool EVK6 External 6 kW Cabin Evaporator
Ordering SKUEVK6
Product roleCabin evaporator or evaporator/heater
Purchase pathTechnical quotation required before supply.
Primary selectionCooling duty and airflow; Blower voltage and current; Physical envelope and outlet layout
Final confirmationUse the model-specific technical tables on this page and confirm the complete system match before ordering.
Compatibility checklist before ordering
  • Cooling duty and airflow
  • Blower voltage and current
  • Physical envelope and outlet layout
  • Expansion device and refrigerant
  • Drain path, return-air path and service access

Commonly matched products

Rencool MD18-2 12 V Electric CompressorRencool MD18-4 24 V Electric CompressorRencool MD24A6 24 V Electric CompressorRencool RNC-105 12 / 24 V Remote CondenserRencool Receiver Drier with Mounting BracketRencool HP/LP Pressure Safety Switch

These are common system roles, not a promise that every listed part fits every application. Match voltage, capacity, refrigerant circuit and connections.

Technical and procurement evidence

Public model-specific documents are not yet attached to this listing. Request the drawing, technical data, test evidence, traceability and document-control level required for your order or tender.

Ordering and delivery

Availability and lead time are confirmed at order review. Match voltage and capacity to the rest of the circuit. Freight is based on the packed consignment; large or configured products receive a confirmed pack plan before dispatch.

Request a technical quote

Product details

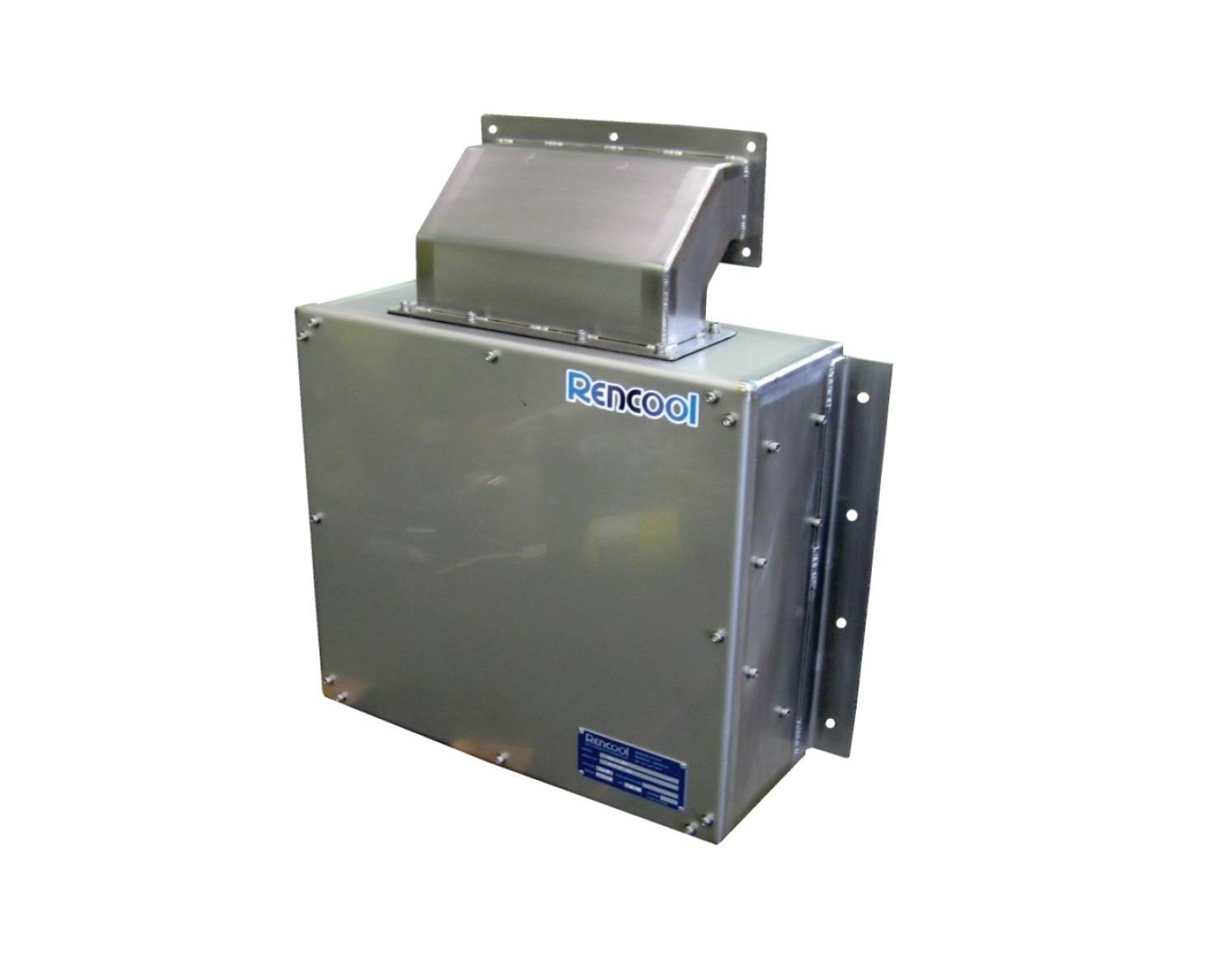

The Rencool EVK6 places the evaporator, blower and service hardware outside the operator cabin, freeing interior space while delivering conditioned air through a compact three-vent cabin interface. It is built for heavy machinery, corrosive sites and high-ambient work.

6 kW reference capability for demanding split systems.

Up to 800 CFM airflow through a three-vent air-ram delivery.

3 mm stainless-steel enclosure supports external mounting.

Why specify the EVK6

Choose the EVK6 when a conventional interior evaporator would consume valuable cabin room or be exposed to operator damage. The external arrangement keeps major service items outside while a sealed air-ram connection carries cooled air through the cab wall.

Common applications

  • Underground and surface mining equipment
  • Dozers, loaders, graders and excavators
  • Mobile cranes and haul trucks
  • Marine and corrosive-duty machinery
  • Military and specialist heavy vehicles

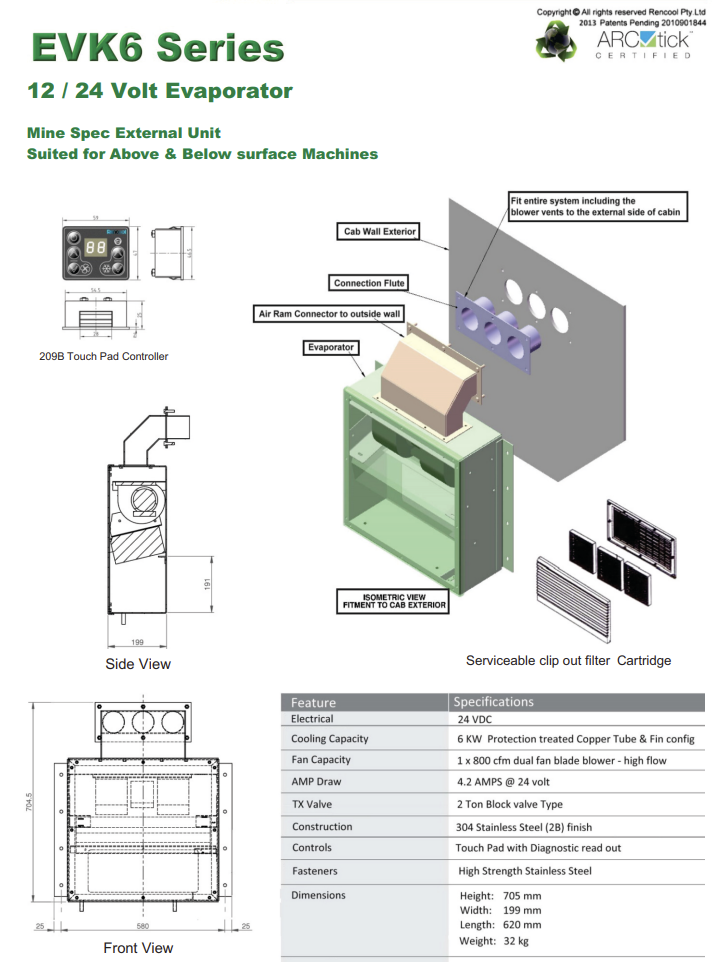

Technical specifications

Performance and configuration

Performance and configuration
Model EVK6
Equipment type External cabin evaporator
Reference cooling capability 6 kW
Reference airflow 800 CFM
Air delivery Three-vent air-ram interface

Electrical and construction

Electrical and construction
Nominal supplies 12 or 24 V DC
Housing 3 mm stainless steel
Service access Removable inspection panel
Filtration Large serviceable intake filter
Exposed components Blower, coil, sensors and expansion valve accessible from service side

Physical and system data

Physical and system data
24 V reference dimensions 620 × 199 × 705 mm
24 V reference mass 32 kg
System pairing Matched compressor–condenser module required
Operating roles Primary, secondary or anti-idle system
Cabin interface Sealed wall opening and air-ram connector

Selection note: Published dimensions and mass are references for the documented 24 V assembly. Confirm the selected voltage-specific build, mounting drawing and delivered accessories before fabrication.
