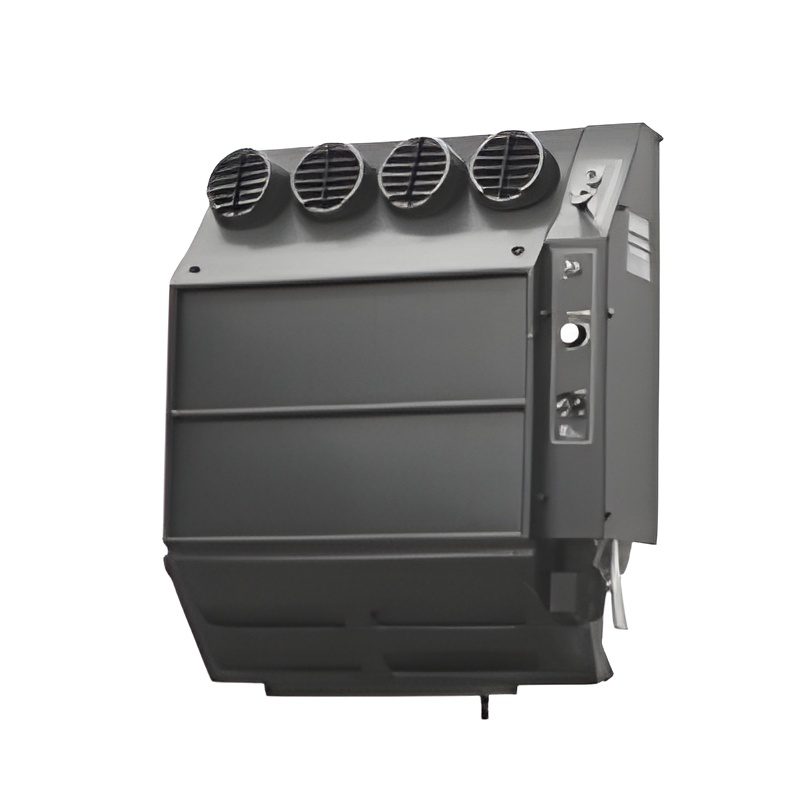

Red Dot R50452P 12 V Wall-Mount Evaporator / Heater

$5,992.00

Australian dollar ($) - AUD
  • Australian dollar ($) - AUD
  • United States dollar ($) - USD

Prices are shown in AUD. Australian GST is included where applicable.

Combine 12 V cabin cooling and coolant-fed heating in one wall-mounted unit. The R50452P delivers 430 CFM nominal airflow from a compact evaporator/heater assembly.

Supply
12 V DC
Coil rating*
9.7 kW
Nominal airflow
430 CFM

*Coil rating at the conditions listed in the specifications.

THIS PRODUCT ISEvaporator component

Match voltage, cooling capacity, refrigerant metering and controls to the full system.

SKU: R50452P Category: Brand:

BUY WITH CONFIDENCE

Is this the right part for your system?

This section separates the product from the rest of the system so you can see what you are buying and what still has to be matched.

THIS PRODUCT IS

Cabin evaporator or evaporator/heater

BEST FOR

Delivering cooled air inside the cabin as part of a matched refrigerant circuit.

Included with this listing

  • Evaporator assembly shown for the selected model
  • Louvers, controls or heater function only where expressly described

Still required for a working system

  • Compatible compressor and condenser
  • Receiver drier and correctly selected expansion device
  • High/low-pressure protection
  • Refrigerant hoses/fittings
  • Drain, wiring and ducting required by the installation

Common options

  • Control panel or thermostat
  • Ducting and vents
  • Heater integration where supported

What may be retained

  • The existing compressor and condenser may be retained when capacity, refrigerant, metering and control strategy are compatible.
Technical decision points
Product / modelRed Dot R50452P 12 V Wall-Mount Evaporator / Heater
Ordering SKUR50452P
Product roleCabin evaporator or evaporator/heater
Purchase pathAvailable for online checkout when destination freight is returned.
Primary selectionCooling duty and airflow; Blower voltage and current; Physical envelope and outlet layout
Final confirmationUse the model-specific technical tables on this page and confirm the complete system match before ordering.
Compatibility checklist before ordering
  • Cooling duty and airflow
  • Blower voltage and current
  • Physical envelope and outlet layout
  • Expansion device and refrigerant
  • Drain path, return-air path and service access

Technical and procurement evidence

Public model-specific documents are not yet attached to this listing. Request the drawing, technical data, test evidence, traceability and document-control level required for your order or tender.

Ordering and delivery

Availability and lead time are confirmed at order review. Match voltage and capacity to the rest of the circuit. Freight is based on the packed consignment; large or configured products receive a confirmed pack plan before dispatch.

Request a technical quote

Product details

The R50452P combines an evaporator coil, cabin blower and hot-coolant heater core in one wall-mounted assembly. It gives commercial vehicles and machinery a practical way to distribute both cooled and heated recirculated air from a single cabin unit.

430 CFM nominal airflow supports even cabin air distribution.

Cooling and coolant-fed heating share one wall-mounted enclosure.

Documented dimensions and current data simplify system planning.

Why specify the R50452P

Use the R50452P when wall space is available and the project needs both refrigeration cooling and engine- or plant-coolant heating. Its vertical format suits cabins where underdash space is limited and directs conditioned air from a single serviceable assembly.

Common applications

  • Trucks, service bodies and off-highway vehicles
  • Mining and construction machinery
  • Agricultural equipment
  • Specialist transport and defence platforms
  • Retrofit cabins requiring combined heating and cooling

Technical specifications

Performance

Performance
Evaporator coil rating 9.7 kW at documented test conditions
Nominal airflow 430 CFM
Cabin air path Recirculating air
Heating source Compatible hot-coolant circuit
System boundary Requires separate compressor and condenser for cooling

Electrical and controls

Electrical and controls
Listed supply 12 V DC
Reference current 22.5 A at 13.6 V DC
Current-data note Reference includes 4 A compressor-clutch allowance
Temperature control Matched system controls required
Other voltages Select a separate voltage-specific model

Physical data

Physical data
Body dimensions 533 × 681 × 234 mm
Reference mass 21 kg
Mounting Vertical cabin wall
Drainage Condensate drain required
Service access Allow room for filters, connections and cover removal

Selection note: The 9.7 kW value is an evaporator-coil rating at 2.2°C refrigerant temperature and 26.7°C entering-air wet bulb. Complete-system output depends on the compressor, condenser, refrigerant circuit and installation.
