BCA-6 Compressor–Condenser Module
BCA-6 Compressor–Condenser Module - Image 2
BCA-6 Compressor–Condenser Module - Image 3
BCA-6 Compressor–Condenser Module - Image 4
BCA-6 Compressor–Condenser Module - Image 5
BCA-6 Compressor–Condenser Module - Image 6

BCA-6 Compressor–Condenser Module

Australian dollar ($) - AUD
  • Australian dollar ($) - AUD
  • United States dollar ($) - USD

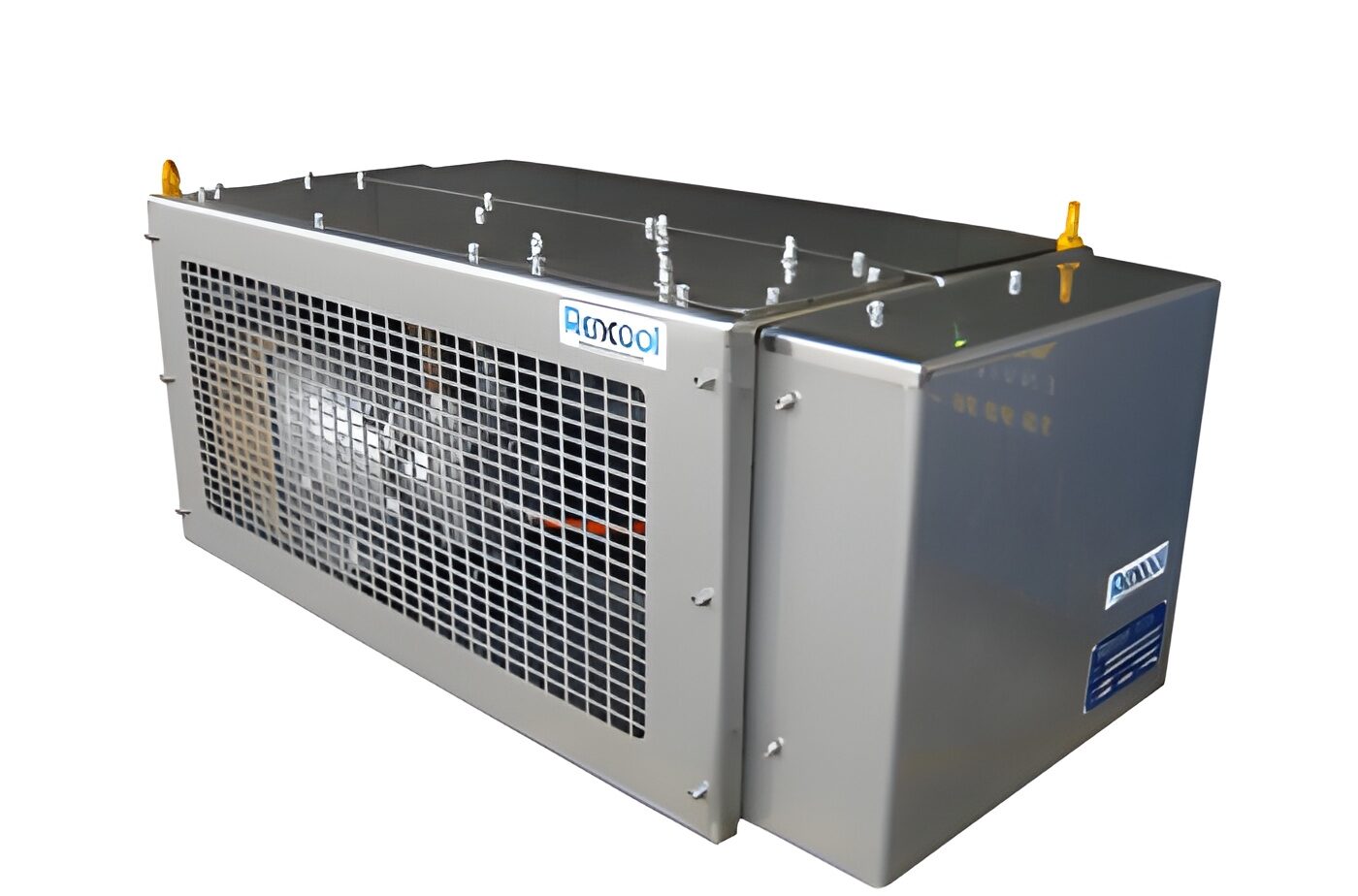

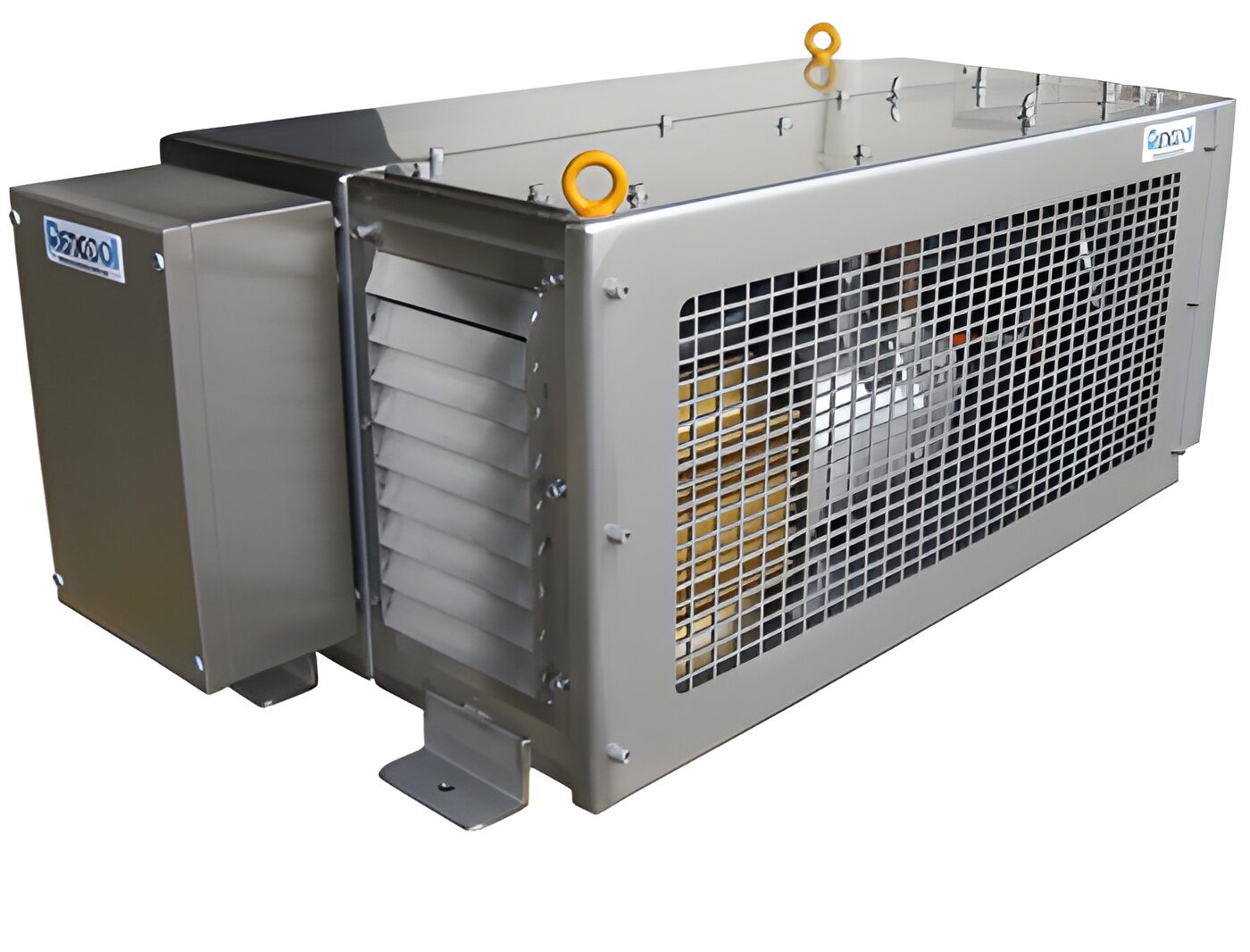

A 24 V compressor–condenser module for a split cabin A/C installation. BCA-6 groups the drive, condenser and supporting refrigeration components in a 3 mm stainless-steel enclosure.

Supply
24 V DC
Format
Compressor–condenser module

Supplied to your requirements. Include the model, quantity, power supply and delivery destination.

Request a quote →
SKU: BCA-6 Category: Brand:

Product details

BCA-6 keeps the main cooling equipment outside the operator’s cab. It can serve a new cabin evaporator or a compatible existing one, with the module and cabin equipment specified together for the required cooling duty.

External enclosure preserves space inside the cab.

Compressor drive, condenser fans and supporting circuit components grouped together.

915 × 475 × 400 mm nominal body envelope.

What you get

The selected BCA-6 build includes its compressor drive and condenser equipment; the quotation identifies pressure switches, receiver drier, oil separation and other supplied items. The cabin evaporator and connecting circuit are separate selections. Nominal equipment weight is 93 kg, excluding installation items and packaging.

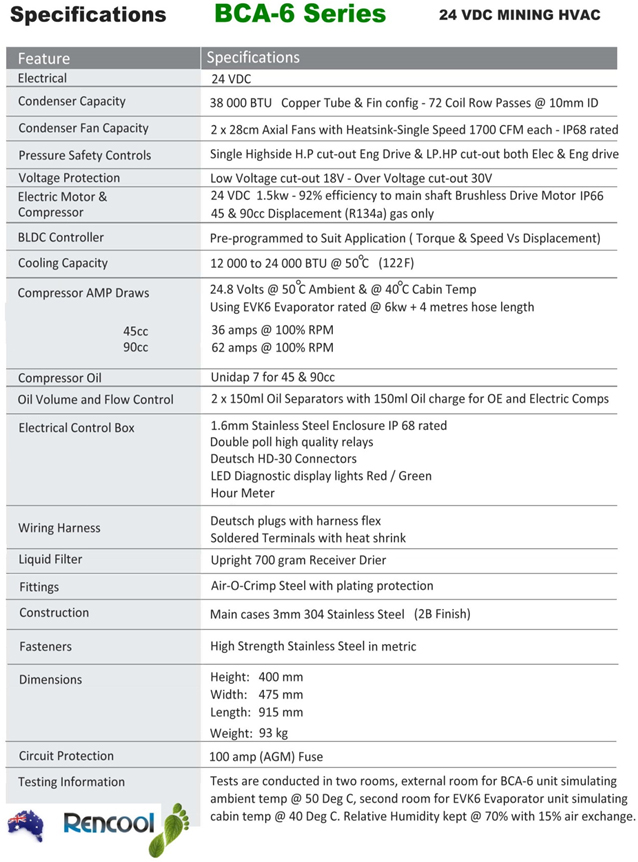

Specifications

Product & configuration

Product & configuration
Assembly type Compressor–condenser module
Compressor drive RDK7 / DRK7Motor and compressor depend on the selected build.

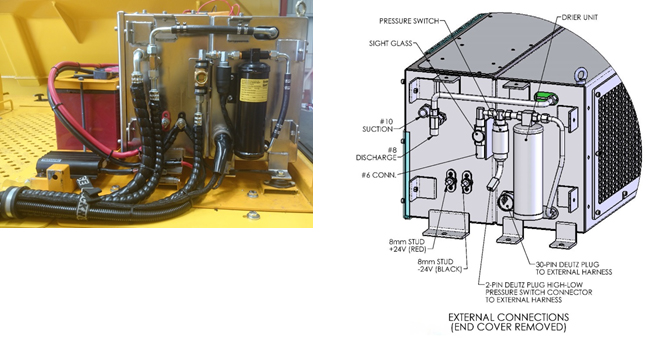

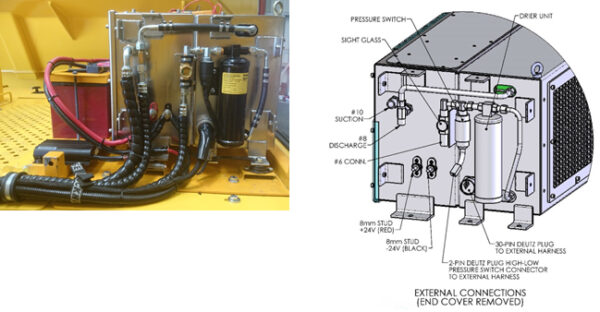

Refrigeration components Condenser fans, pressure switches, receiver drier and oil separationIncluded items are listed in the quotation.

Electrical & controls

Electrical & controls
Nominal supply 24 V DC

Dimensions & installation

Dimensions & installation
Enclosure 3 mm stainless steel
Nominal unit weight 93 kgEquipment weight; packaging and installation accessories are additional.

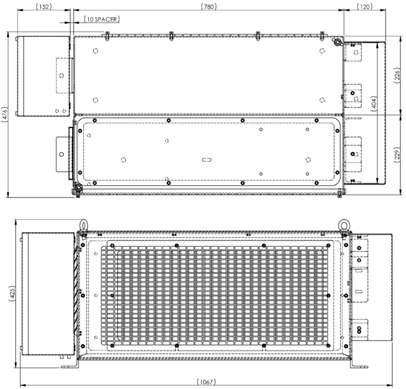

Nominal body dimensions (L × W × H) 915 × 475 × 400 mmEquipment dimensions; allow additional space for connections and servicing.

Fit & installation

System components

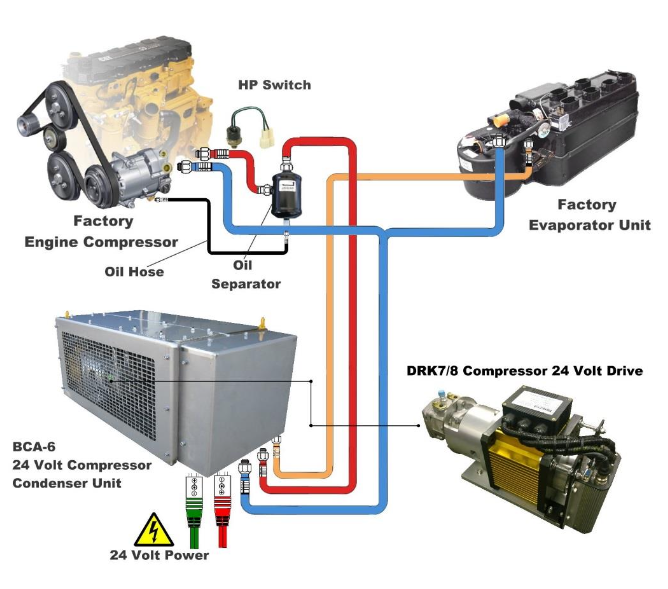

The BCA-6 combines the compressor drive and condenser. A matched cabin evaporator, connecting refrigerant circuit and controls complete the air-conditioning installation.

Drive installation

Keep the module cooling airflow and service access clear. Include the RDK7 drive, condenser fans and evaporator blower when assessing supply capacity.

  • Identify the existing evaporator and compressor when modifying an original system.
  • Include pressure controls, oil return and operating modes in the system design.
  • Allow for the module weight when designing its support and lifting arrangement.

Configure this product for your application

Request a product quote with your application, supply voltage, quantity and delivery location.

Delivery

Delivery cost Delivery is priced with your quote. Include your delivery address and order quantity when requesting a quote.
Delivery information Shipping, delivery times and returns

Manuals & drawings

View manuals and drawings (1)
  • RDK7-24 service manualNovember 2014 · RDK7-24 compressor drive. For a system containing this drive, this manual covers the drive component only.
