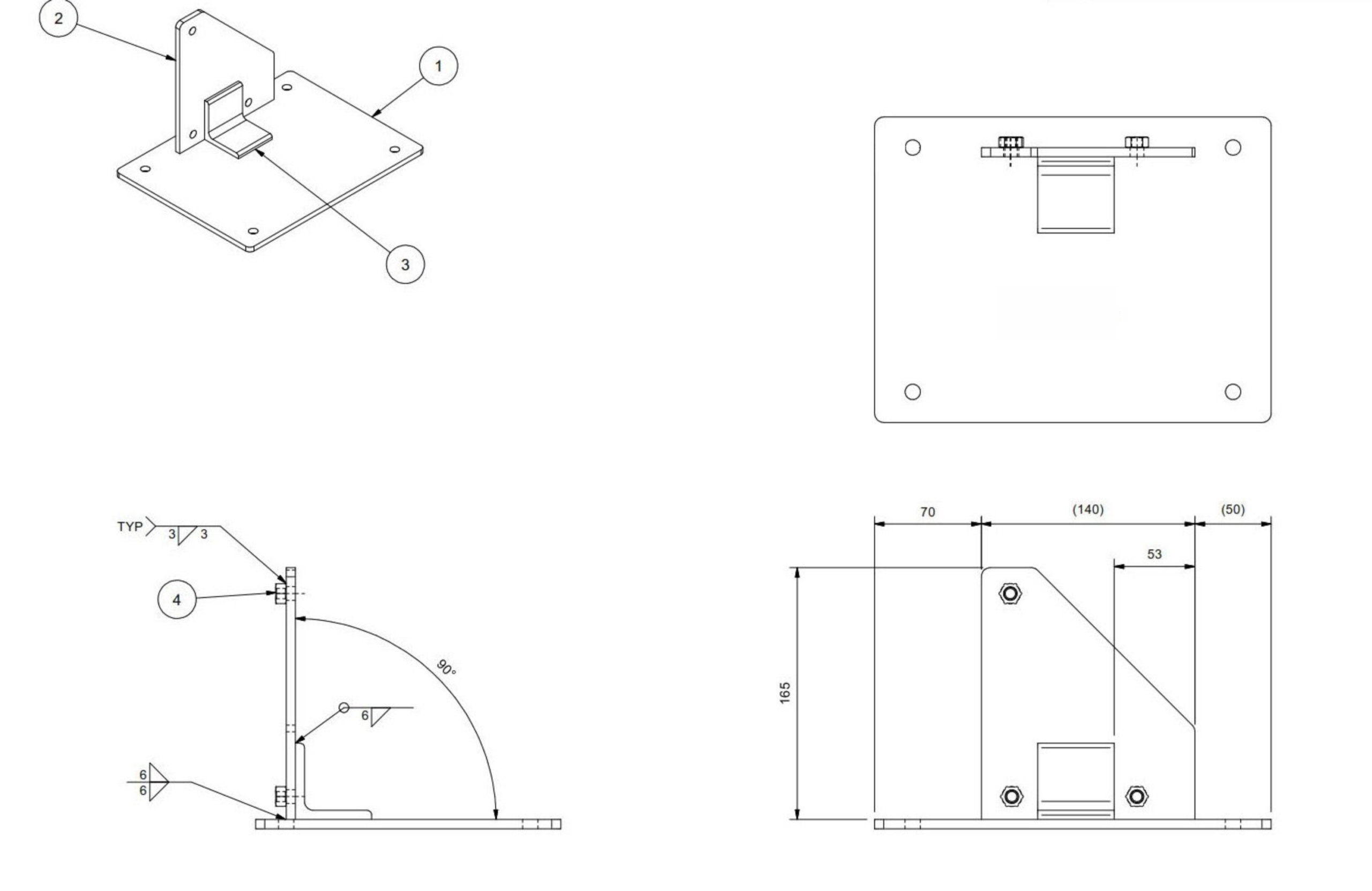

Rencool MD-series compressor mounting bracket dimensional drawing

Rencool MD18 / MD24 / MD27 Compressor Mounting Bracket

$240.00

Australian dollar ($) - AUD
  • Australian dollar ($) - AUD
  • United States dollar ($) - USD

Purpose-built mounting bracket for Rencool MD18, MD24 and MD27 electric compressor installations. Confirm the exact compressor mounting pattern and supplied hardware before ordering.

THIS PRODUCT ISSystem accessory

Check the compatible compressor family and electrical or refrigerant connection before ordering.

SKU: MD-B Category:

BUY WITH CONFIDENCE

Is this the right part for your system?

This section separates the product from the rest of the system so you can see what you are buying and what still has to be matched.

THIS PRODUCT IS

System accessory

BEST FOR

Completing a compatible DC air-conditioning circuit or installation.

Included with this listing

  • MD-series compressor mounting bracket only

Still required for a working system

  • Application-specific vehicle/machine mounts
  • Fasteners and isolators selected for the installation unless expressly quoted
Technical decision points
CompatibilityMD18 / MD24 / MD27 family subject to suffix and mounting check
Price basisBracket only
Compatibility checklist before ordering
  • Parent product/model
  • Connection size or electrical interface
  • Voltage where applicable
  • Quantity required
  • Items expressly included in the listing

Commonly matched products

Rencool MD18-2 12 V Electric CompressorRencool MD18-4 24 V Electric CompressorRencool MD24A6 24 V Electric Compressor

These are common system roles, not a promise that every listed part fits every application. Match voltage, capacity, refrigerant circuit and connections.

Ordering and delivery

Availability and lead time are confirmed during order review. Freight is based on the packed consignment; large or configured products receive a confirmed pack plan before dispatch.

Check my application

Product details

Support a compact Rencool MD-series compressor with a purpose-built steel mounting bracket. The base-and-upright layout gives fabricators a clear mounting platform for MD18, MD24 and MD27 compressor projects while keeping the compressor separate from the engine accessory drive.

Purpose-built MD-series compressor support.

Flat base plate with upright mounting face and welded reinforcement.

Suitable for custom vehicle, machinery and equipment A/C projects.

Why specify the MD-series bracket

The bracket provides a repeatable starting point for mounting an electric compressor in a custom installation. Confirm the compressor housing, mounting pattern, hose access and service clearance before ordering; individual compressor variants can use different connections or control hardware.

Common applications

  • Classic vehicle and restomod air conditioning
  • Electric and hybrid vehicle conversions
  • Commercial vehicles and mobile equipment
  • Auxiliary and engine-off cooling projects

Technical specifications

Product and compatibility

Product Rencool MD-series compressor mounting bracket
Compressor families MD18, MD24 and MD27Confirm the exact compressor mounting pattern before ordering.
Configuration Base plate, upright support and welded reinforcement
Supplied hardware Confirm with orderThe drawing shows fasteners but does not establish the retail hardware pack.

Drawing references

Base width reference 260 mmDerived from the 70 + 140 + 50 mm chain on the supplied drawing.
Upright height 165 mm
Upright angle 90 degrees
Reinforcement reference 53 mm
Material and finish Confirm with orderNot stated on the supplied dimensional drawing.

Technical selection: Use the released bracket drawing and compressor drawing together. Check mounting-hole positions, fastener specification, compressor orientation, refrigerant-port clearance and vibration isolation for the final installation.

Order the correct compressor support

Match the bracket to the exact Rencool compressor model and confirm the supplied hardware before checkout.

Technical drawing

Download the MD-series bracket drawing
