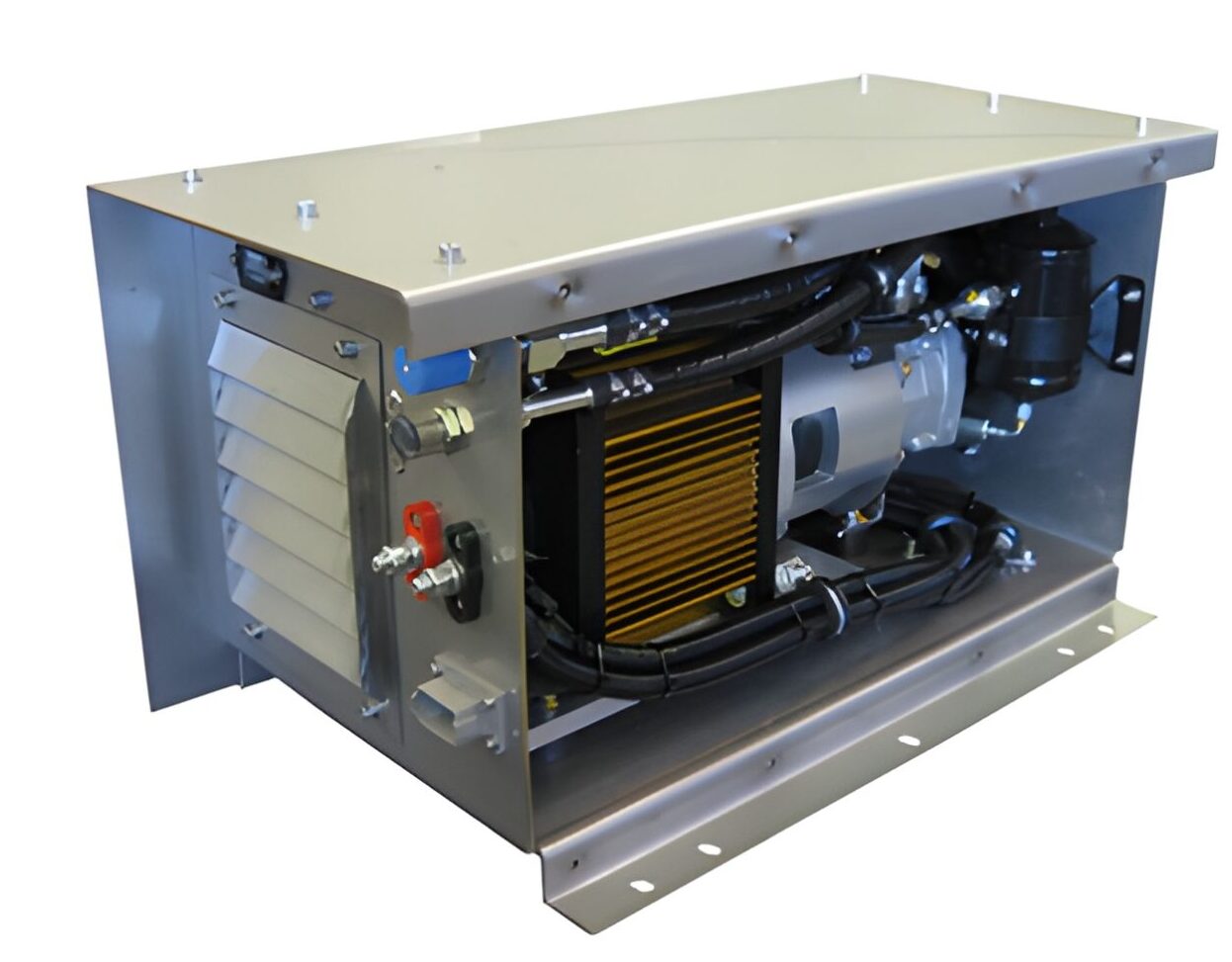

RDK7-24 groups the motor, compressor and controller in a stainless enclosure. It is the compressor-drive component for cabin cooling installations with separate condensers and evaporators, including projects integrating with an existing refrigeration circuit.
1.5 kW or 2 kW brushless motor options; these are motor ratings, not cooling output.
45, 92 or 120 cm³ compressor options.
Oil separation and single-LED diagnostics in the enclosed drive arrangement.
What you get
The quoted drive comprises the selected motor, compressor and controller assembly. Condenser, cabin evaporator and connecting refrigeration circuit are separate. Integration with an existing vehicle circuit requires compatible pressure controls, oil return and changeover control.
Specifications
Product & configuration
Product & configuration
| Oil separation |
Included |
| Refrigerant connections |
MIOR suction and dischargeFitting sizes depend on the selected assembly. |
| Refrigerant |
R134aRDK7-24 configuration covered by the service instructions. |
Electrical & controls
Electrical & controls
| Nominal supply |
24 V DC |
| Motor type |
Brushless DC |
| Motor options |
1.5 kW / 2 kWMotor power; not cabin cooling output. |
| Controller operating voltage |
18.3–29.9 V DCCheck the selected controller version. |
| Example operating current |
60 A at 24 V92 cm³ compressor at 10 Nm and +40°C. Not a maximum-current rating. |
| Diagnostics |
Single LED diagnostics |
| Operating modes |
Primary cooling / anti-idle / dual-compressorThe refrigeration circuit and controls differ for each arrangement. |
| Factory-set control |
Torque, speed and protection settingsControl programming is matched to the motor and compressor build. |

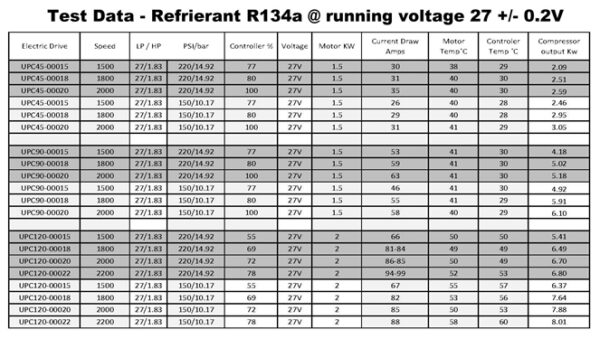

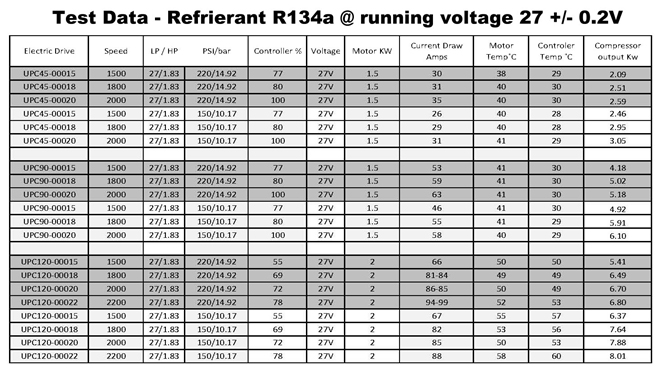

Performance
Performance
| Compressor displacement options |
45 / 92 / 120 cm³Specify the required assembly. |
| Suction hose length |
12 m maximumKeep runs short and minimise sharp bends. The complete circuit must maintain oil return. |

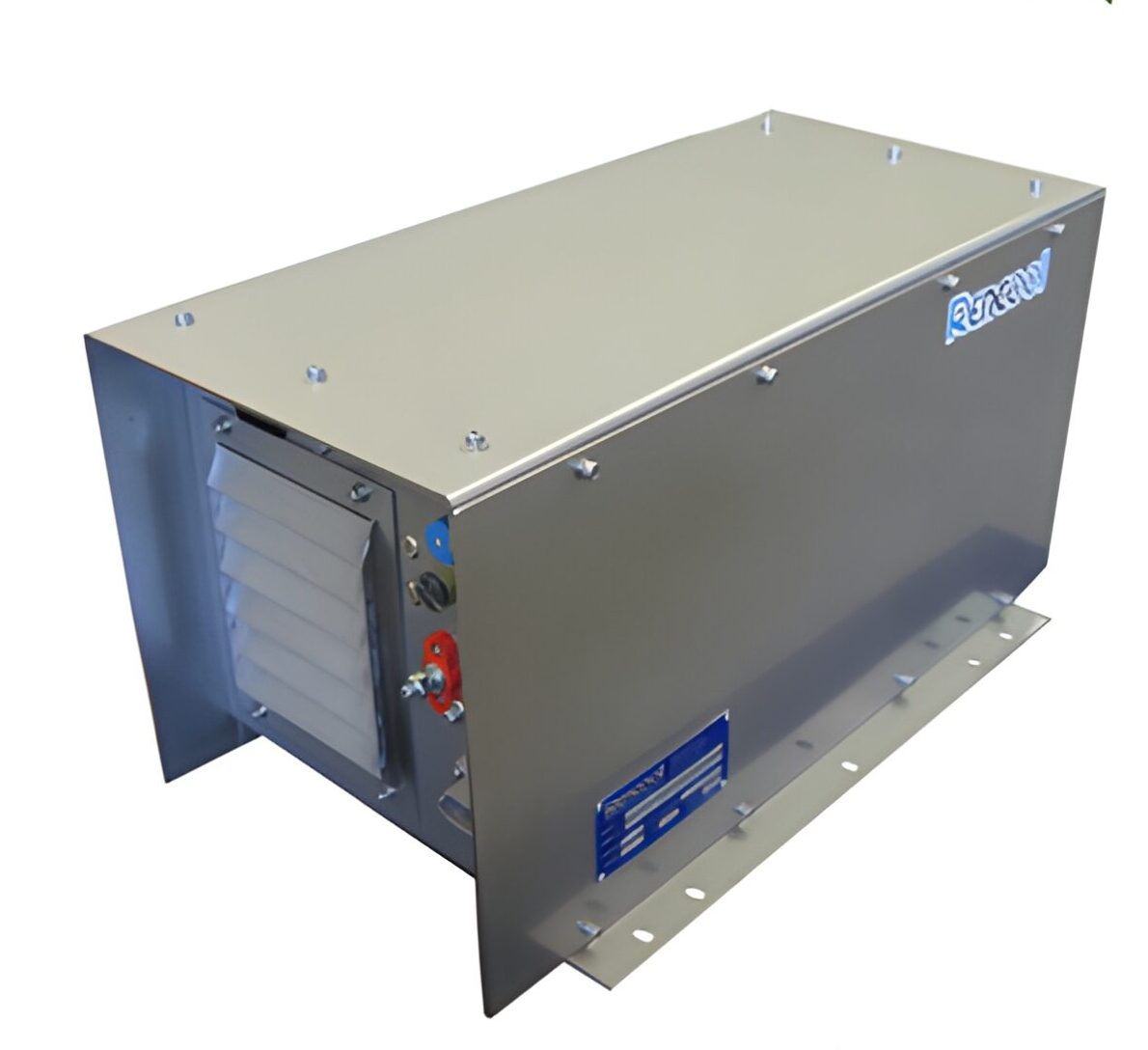

Dimensions & installation
Dimensions & installation
| Enclosure and mounting |
Stainless enclosure; 6061 aluminium mounting structure |
| Enclosure dimensions (L × W × H) |

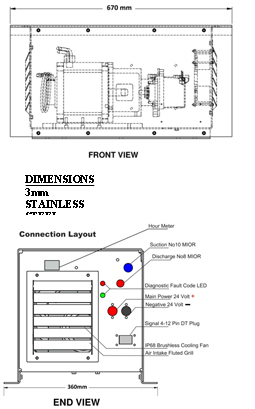

670 × 360 × 342 mmEquipment dimensions; allow additional space for connections and servicing. |
Fit & installation
Mechanical installation
Provide clean ambient air through both ends of the enclosure. Keep the drive away from exhaust heat and debris, and retain access to the refrigerant connections and controller.
Electrical installation
Size the supply cables, fuse and charging system for the selected drive and the other vehicle loads. The compressor drive, condenser fans and cabin blower all contribute to the power requirement.
Engine-off cooling
The condenser fans must operate during electric compressor operation. Include the cabin blower and condenser fans in the battery protection and shutdown arrangement.

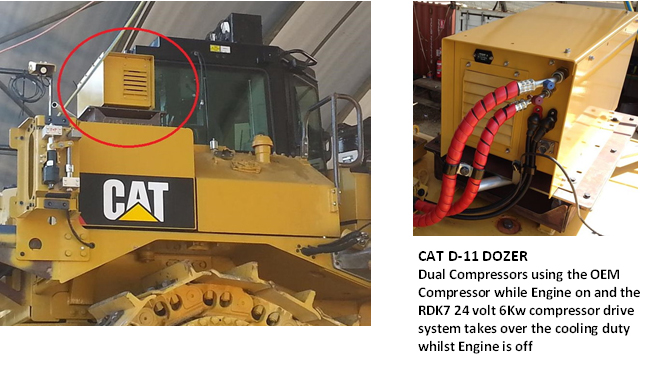

Dual-compressor systems

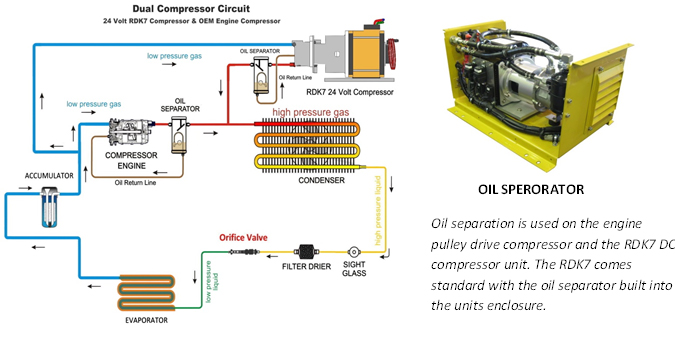

A shared circuit requires the correct oil-separation, oil-return and changeover arrangement. Match the OEM compressor, heat exchangers, refrigerant connections and controls as a complete installation.
- Include charging capacity and engine-off operating time in the electrical brief.
- For an existing A/C circuit, provide the schematic and intended changeover operation.
Configure this product for your application
Request a product quote with your application, supply voltage, quantity and delivery location.
