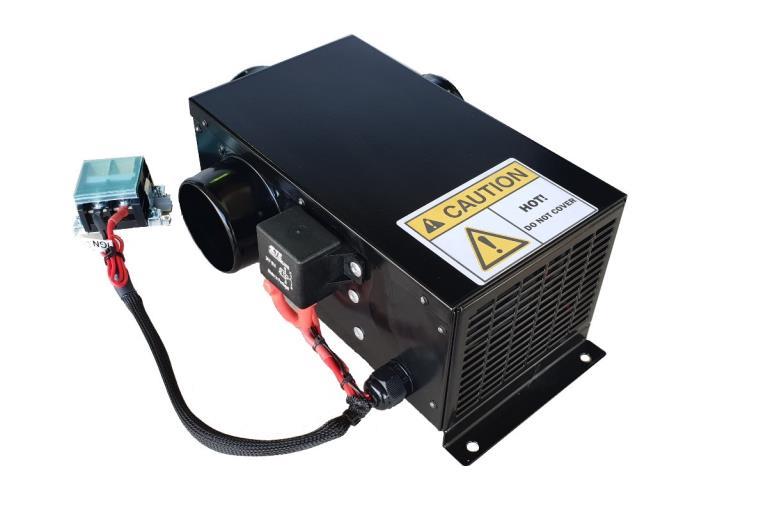

Rencool RHU Electric Cabin Heaters product view
Rencool RHU Electric Cabin Heaters product view 2

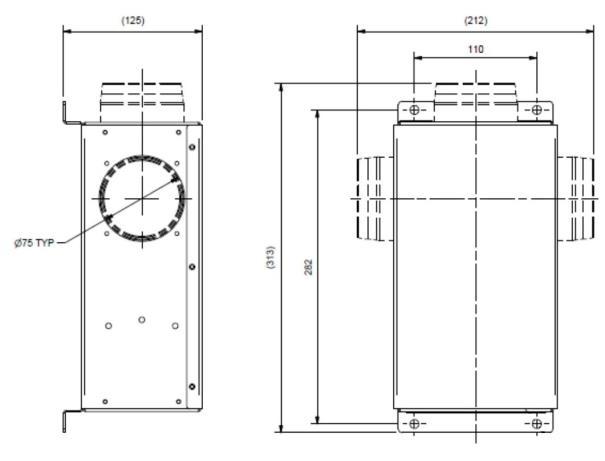

Rencool RHU Electric Cabin Heaters dimensional reference

Rencool RHU Electric Cabin Heaters

Price on application

Australian dollar ($) - AUD
  • Australian dollar ($) - AUD
  • United States dollar ($) - USD

Prices are shown in AUD. Australian GST is included where applicable.

Add electric cabin heat without a hot-coolant circuit. Rencool RHU heaters offer separate 12 V and 24 V builds, with element power and outlet options to suit the installation.

Supply options
12 V / 24 V DC
Heater options
200 W–1,000 W
Air outlet options
One, two or three

Supplied to your requirements. Include the model, quantity, power supply and delivery destination.

Request a quote →
Category: Brand:

BUY WITH CONFIDENCE

Is this the right part for your system?

This section separates the product from the rest of the system so you can see what you are buying and what still has to be matched.

THIS PRODUCT IS

Electric cabin heater family

BEST FOR

Cabins and enclosures needing electric heat without engine coolant plumbing.

Included with this listing

  • Selected heater model and the items expressly listed for that variant

Still required for a working system

  • Voltage-matched power supply
  • Correct fuse, cable, relay/contactor and controls
  • Safe airflow and mounting clearances
  • Ducting or outlets not expressly included

Common options

  • Thermostat or control panel
  • Ducting and outlets
  • Mounting guard

What may be retained

  • No existing components are assumed compatible. List anything you plan to retain when requesting a technical review.
Technical decision points
Product / modelRencool RHU Electric Cabin Heaters
Ordering SKUNot confirmed — quote by product name and page URL.
Product roleElectric cabin heater family
Purchase pathTechnical quotation required before supply.
Primary selectionExact heater model and heat output; 12 V or 24 V supply; Continuous current and cable length
Final confirmationUse the model-specific technical tables on this page and confirm the complete system match before ordering.
Compatibility checklist before ordering
  • Exact heater model and heat output
  • 12 V or 24 V supply
  • Continuous current and cable length
  • Airflow and outlet arrangement
  • Over-temperature and control strategy

Commonly matched products

Rencool Cabin Climate Controllers

These are common system roles, not a promise that every listed part fits every application. Match voltage, capacity, refrigerant circuit and connections.

Technical documents

RHU installation manualPDF

Ordering and delivery

The exact heater variant and lead time are confirmed before quotation or order. Freight is based on the packed consignment; large or configured products receive a confirmed pack plan before dispatch.

Request a technical quote

Product details

RHU heaters use electric elements and a fan to deliver warm air to the cabin. The range includes compact housings with a choice of outlets and the separate RHU8 configuration, so the heater can be selected around available space and electrical capacity.

Electric heating operates independently of the A/C refrigeration circuit.

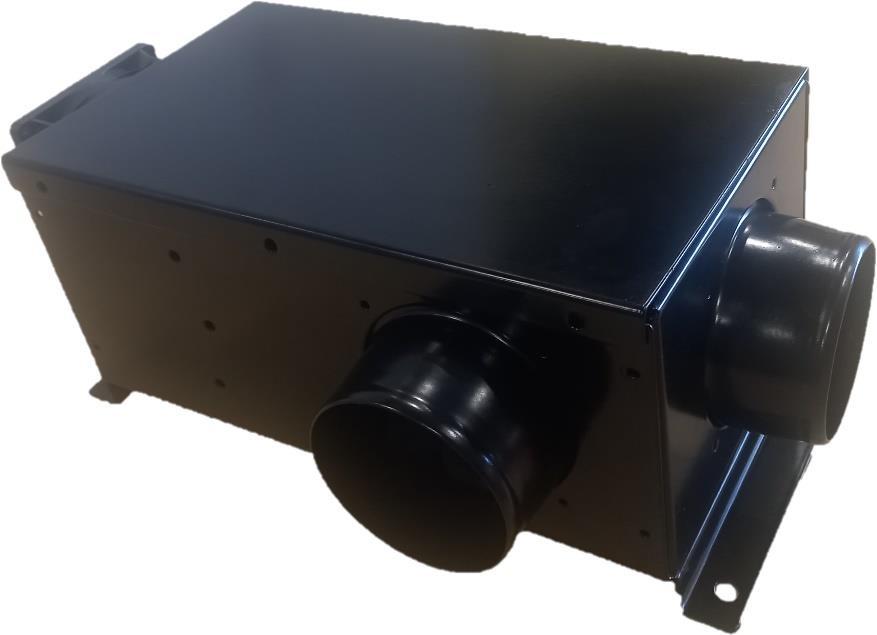

Compact RHU outlet options: one, two or three.

Separate RHU8 build with a two-speed fan.

What you get

The quotation identifies the heater model, voltage, element power, outlets and controls. Compact RHU and RHU8 are different builds. The compact body is 300 × 150 × 125 mm plus 35 mm outlet projection; those dimensions do not apply to RHU8. Cabin temperature control is separate from the internal over-temperature protection.

Common applications

  • Machinery cabins
  • Sleeper and rest spaces
  • Mobile workshops and equipment shelters

Specifications

Product & configuration

Product & configuration
Heating method DC electric
Air outlet options One, two or threeSelected with the heater build.
Compact RHU fan 80 mm brushless

Electrical & controls

Electrical & controls
Supply options 12 V / 24 V DCSeparate heater builds.
Over-temperature protection Two internal cut-outsCompact RHU build; retain the specified external switching and protection.
Compact RHU switching Remote solid-state relaySeparate cabin temperature control is required.

Performance

Performance
Element configuration 200 W–1,000 WOutput depends on the specified voltage and element combination.
RHU8 — 12 V output 750 W maximumRHU8 is a separate heater build with a two-speed fan.
RHU8 — 24 V output 1,000 W maximum; 750 W settingRHU8 is a separate heater build with a two-speed fan.

Dimensions & installation

Dimensions & installation
Compact housing option 300 × 150 × 125 mmBody only; outlet projection is an additional 35 mm. Confirm the selected enclosure before installation.
Compact RHU housing Powder-coated steel
Compact RHU mounting Outlets horizontal or front outlet facing upKeep the inlet, outlets and surrounding space clear.

Technical selection: Confirm model, supply voltage, heat output, blower load and over-current protection for the selected heater. Size the electrical supply for the complete continuous load.

Performance & selection

RHU8 heater settings

Choose heater output to match the cabin heat loss and the available electrical supply.

RHU8 · 12 V

Heating750 W
RHU8 · 24 V, low

Heating750 W
RHU8 · 24 V, high

Heating1000 W

RHU8 build with two-speed fan. The compact RHU enclosure is a different configuration; its size and element combinations are listed separately in the specifications.

Model / setting Heating
12 V maximum 750 W
24 V reduced setting 750 W
24 V maximum 1,000 W

Configure this product for your application

Request a product quote with your application, supply voltage, quantity and delivery location.

Delivery

Voltage

Product type

How it is used

Delivery cost Delivery is priced with your quote. Include your delivery address and order quantity when requesting a quote.
Delivery information Shipping, delivery times and returns

Manuals & drawings

View manuals and drawings (2)
  • RHU compact heater manualJune 2020 · compact RHU heater. Element combinations and supply voltage vary by build.
  • RHU8 heater specificationRHU8: separate 12 V and 24 V builds with two-speed fans. The compact RHU manual describes a different enclosure option.
