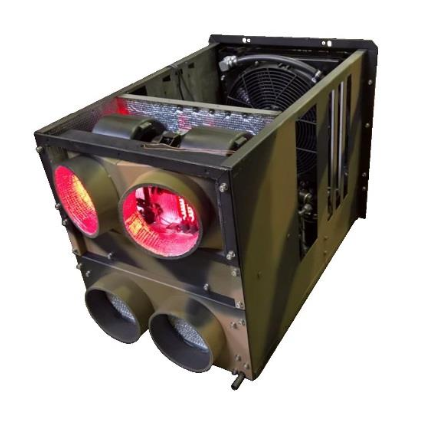

Rencool DFP1-24 Portable 5 kW Air Conditioner product view

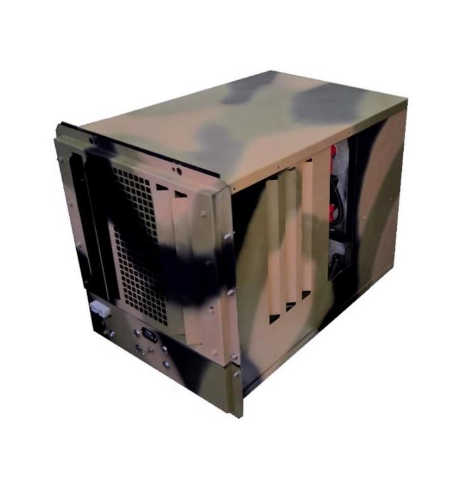

Rencool DFP1-24 Portable 5 kW Air Conditioner product view 2

Rencool DFP1-24 Portable 5 kW Air Conditioner

Australian dollar ($) - AUD
  • Australian dollar ($) - AUD
  • United States dollar ($) - USD

Prices are shown in AUD. Australian GST is included where applicable.

Deploy 5 kW portable cooling for shelters and equipment enclosures with the Rencool DFP1-24 self-contained 24 V ducted air conditioner.

Format
Portable ducted air conditioner
THIS PRODUCT ISComplete cooling package

Designed as a packaged system. Confirm voltage, capacity, mounting space and power supply before ordering.

Supplied to your requirements. Include the model, quantity, power supply and delivery destination.

Request a quote →
SKU: DFP1-24 Category: Brand:

BUY WITH CONFIDENCE

Is this the right part for your system?

This section separates the product from the rest of the system so you can see what you are buying and what still has to be matched.

THIS PRODUCT IS

Portable self-contained air conditioner

BEST FOR

Temporary, deployable or service applications that need a movable cooling package and planned hot-air rejection.

Included with this listing

  • Portable cooling assembly described on the listing

Still required for a working system

  • Suitable electrical supply and protection
  • Hot-air discharge and condensate management
  • Application-specific ducting or adaptors
  • Transport and securing plan

Common options

  • Application ducting
  • Securing frame
  • Power lead sized for the installation

What may be retained

  • No existing components are assumed compatible. List anything you plan to retain when requesting a technical review.
Technical decision points
Product / modelRencool DFP1-24 Portable 5 kW Air Conditioner
Ordering SKUDFP1-24
Product rolePortable self-contained air conditioner
Purchase pathTechnical quotation required before supply.
Primary selectionCooling duty and ambient; Supply voltage/current; Supply and return-air route
Final confirmationUse the model-specific technical tables on this page and confirm the complete system match before ordering.
Compatibility checklist before ordering
  • Cooling duty and ambient
  • Supply voltage/current
  • Supply and return-air route
  • Condenser hot-air discharge
  • Operating duration and energy source

Commonly matched products

Rencool Cabin Climate Controllers

These are common system roles, not a promise that every listed part fits every application. Match voltage, capacity, refrigerant circuit and connections.

Technical and procurement evidence

Public model-specific documents are not yet attached to this listing. Request the drawing, technical data, test evidence, traceability and document-control level required for your order or tender.

Ordering and delivery

Configured to order. Application, lead time and freight are confirmed in the quotation. Freight is based on the packed consignment; large or configured products receive a confirmed pack plan before dispatch.

Request a technical quote

Product details

The Rencool DFP1-24 is a portable, self-contained 24 V air conditioner for temporary shelters, equipment enclosures and mobile field applications. It delivers a 5 kW cooling reference and ducts conditioned air into the occupied or protected space.

Portable self-contained format avoids permanent installation in the conditioned enclosure.

Ducted supply and return connections let the unit operate outside the space.

24 V DC power supports mobile, field and remote-site deployments.

Why specify the DFP1-24

Deploy the DFP1-24 when cooling is needed quickly or equipment must move between locations. The refrigeration equipment remains in one portable package, while flexible ducts carry air to the shelter, cabin or enclosure. A 1 kW heating reference is available for the documented 24 V configuration.

Common applications

  • Communications and electronics shelters
  • Field hospitals and temporary work shelters
  • Machine cabins and mobile workshops
  • Small aircraft ground cooling
  • Temporary test cells and equipment enclosures

Technical specifications

Product configuration

Product configuration
Model DFP1-24
Equipment type Portable self-contained ducted air conditioner
Nominal supply 24 V DC
Reference cooling duty 5 kW
Reference heating duty 1 kW at 24 V
Installation External unit with supply and return ducts

Physical and duct interfaces

Physical and duct interfaces
Reference unit mass Under 50 kg before project accessories
Air connections 150 mm supply/return outlet class
Placement Stable external surface with unobstructed condenser airflow
Ducting Length and bends selected to minimise pressure loss
Weather exposure Protection and placement reviewed for application

System planning

System planning
Power source 24 V supply sized for operating and start demand
Controls Configured to deployment requirement
Condensate Drainage route required
Accessories Ducts, adapters and protection selected by quote
Shipping Packed dimensions and freight confirmed after configuration

Selection note: Cooling, heating and mass figures are product references. Delivered performance varies with duct length, shelter load, ambient temperature and supply voltage at the unit.
